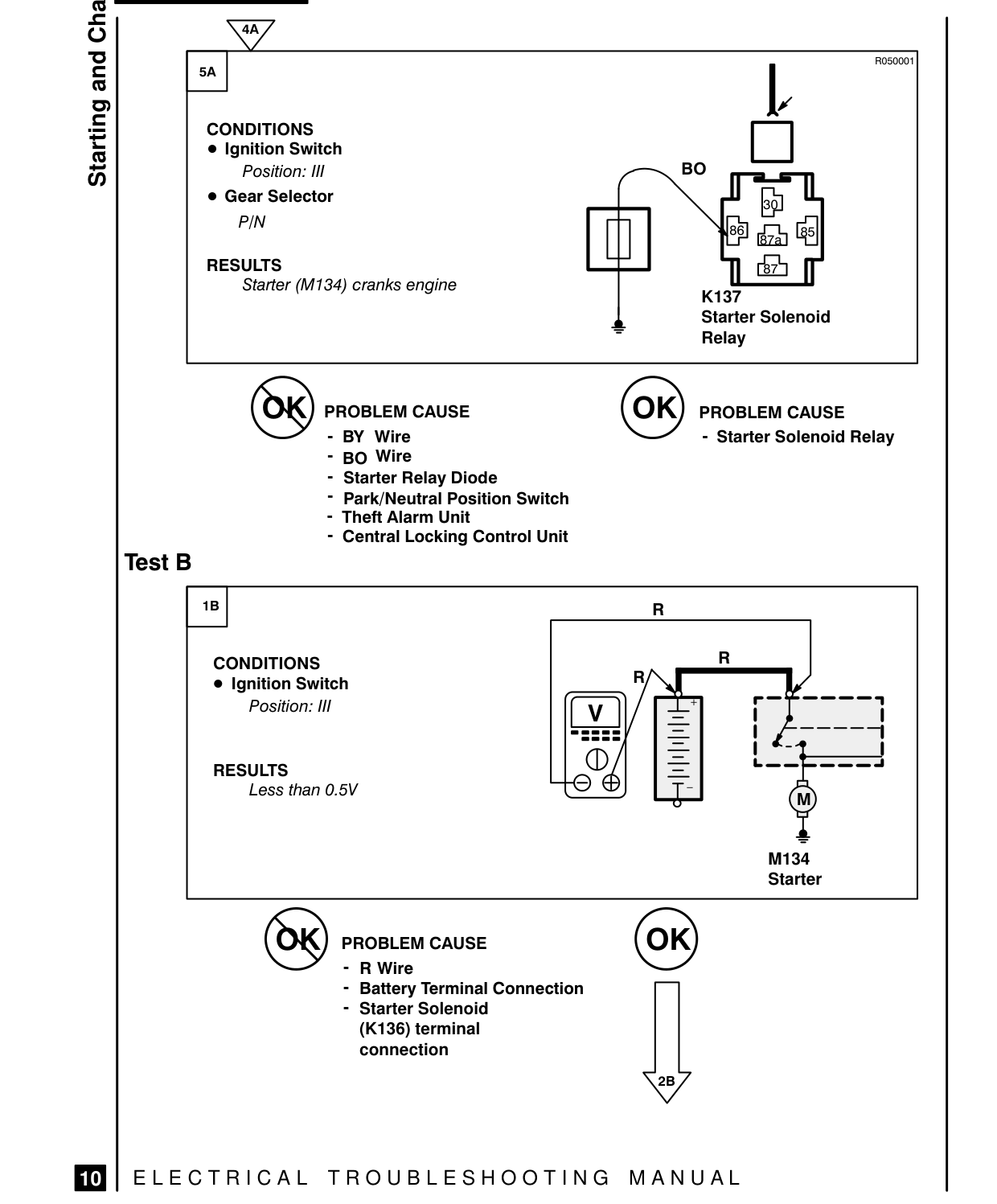

Starting and charging – fault diagnosis

STARTING AND CHARGING – FAULT DIAGNOSIS

oO

Cc

CONDITIONS e Ignition Switch an Position: Ill e Gear Selector

RESULTS Starter (M134) cranks engine

(59) PROBLEM CAUSE - BY Wire - BO Wire - Starter Relay Diode Park/Neutral Position Switch - Theft Alarm Unit - Central Locking Control Unit Test B

KE CONDITIONS ® Ignition Switch Position: Ill ition

RESULTS Less than 0.5V

(59) PROBLEM CAUSE R Wire - Battery Terminal Connection Starter Solenoid (K136) terminal connection

ELECTRICAL TROUBLESHOOTING MANUAL

R050001

BO | ba

57H K137 Starter Solenoid Relay

PROBLEM CAUSE - Starter Solenoid Relay

ae ree

Oy b——fp———SA

M134 Starter
