STARTING AND CHARGING – FAULT DIAGNOSIS

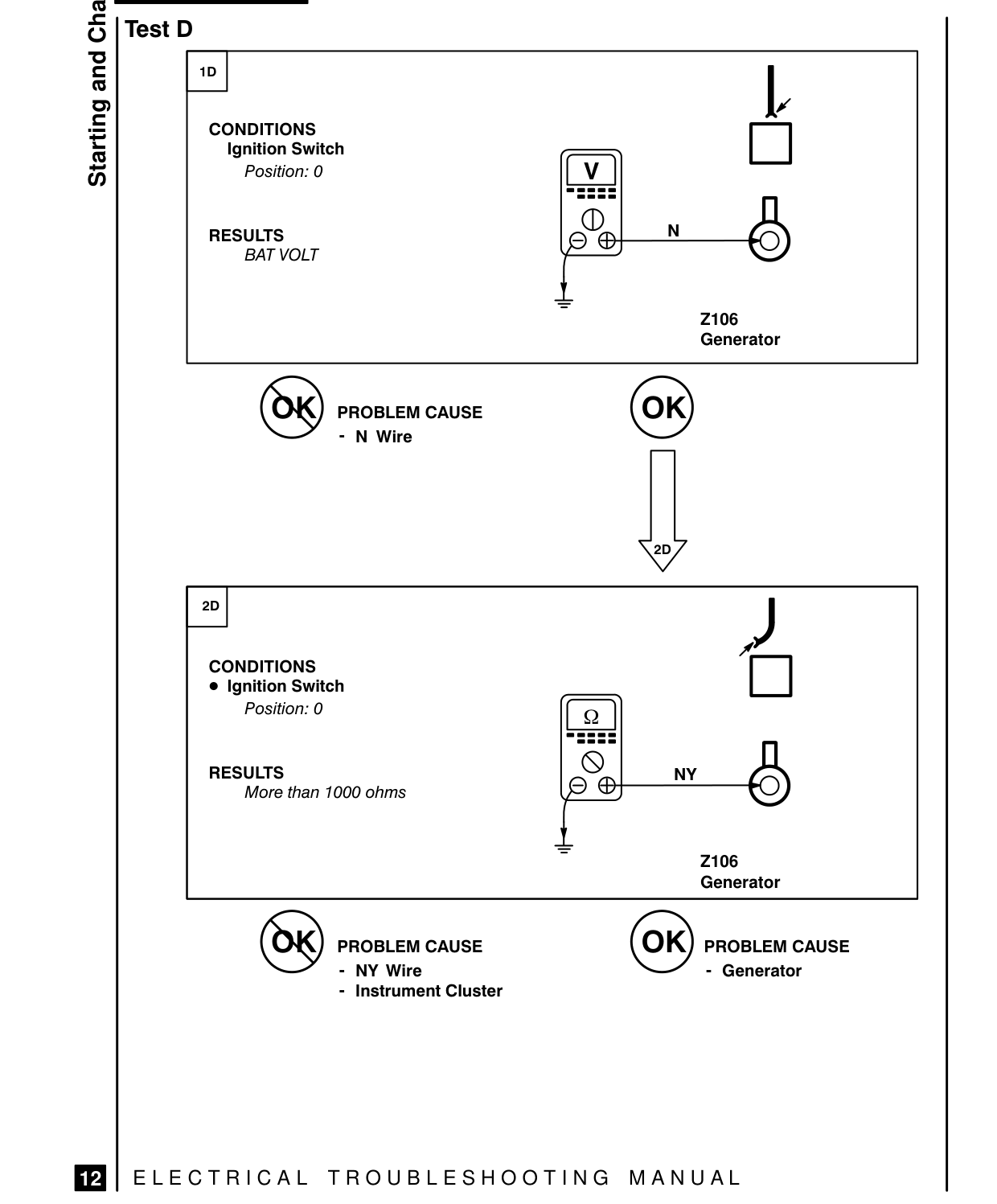

oO |TestD

[4] d CONDITIONS Ignition Switch aN Position: 0 RESULTS BAT VOLT

(59) PROBLEM CAUSE - N Wire

® Ignition Switch CONDITIONS

Position: 0

RESULTS More than 1000 ohms

(59) PROBLEM CAUSE - NY Wire Instrument Cluster

EB | ELECTRICAL TROUBLESHOOTING MANUAL

O A

106 Generator

Pp,

NY SA

7106 Generator

PROBLEM CAUSE - Generator
