AXLE DIFFERENTIAL ASSEMBLY (page 7 of 7)

REAR AXLE AND FINAL DRIVE

7

OVERHAUL

PINION PRELOAD SHIMS

PART No.

INCH

MM

FTC3869

.085

2.155

FTC3870

.084

2.130

FTC3871

.083

2.105

FTC3872

.082

2.080

FTC3873

.081

2.055

FTC3874

.080

2.030

FTC3875

.079

2.005

FTC3876

.078

1.980

FTC3877

.077

1.955

FTC3878

.076

1.930

FTC3879

.075

1.905

FTC3880

.074

1.880

FTC3881

.073

1.855

FTC3882

.072

1.830

FTC3883

.071

1.805

FTC3884

.070

1.780

FTC3885

.069

1.755

FTC3886

.068

1.730

FTC3887

.067

1.705

FTC3888

.066

1.680

FTC3889

.065

1.655

FTC3890

.064

1.630

FTC3891

.063

1.605

FTC3892

.062

1.580

FTC3893

.061

1.555

FTC3894

.060

1.530

FTC3895

.059

1.505

FTC3896

.058

1.480

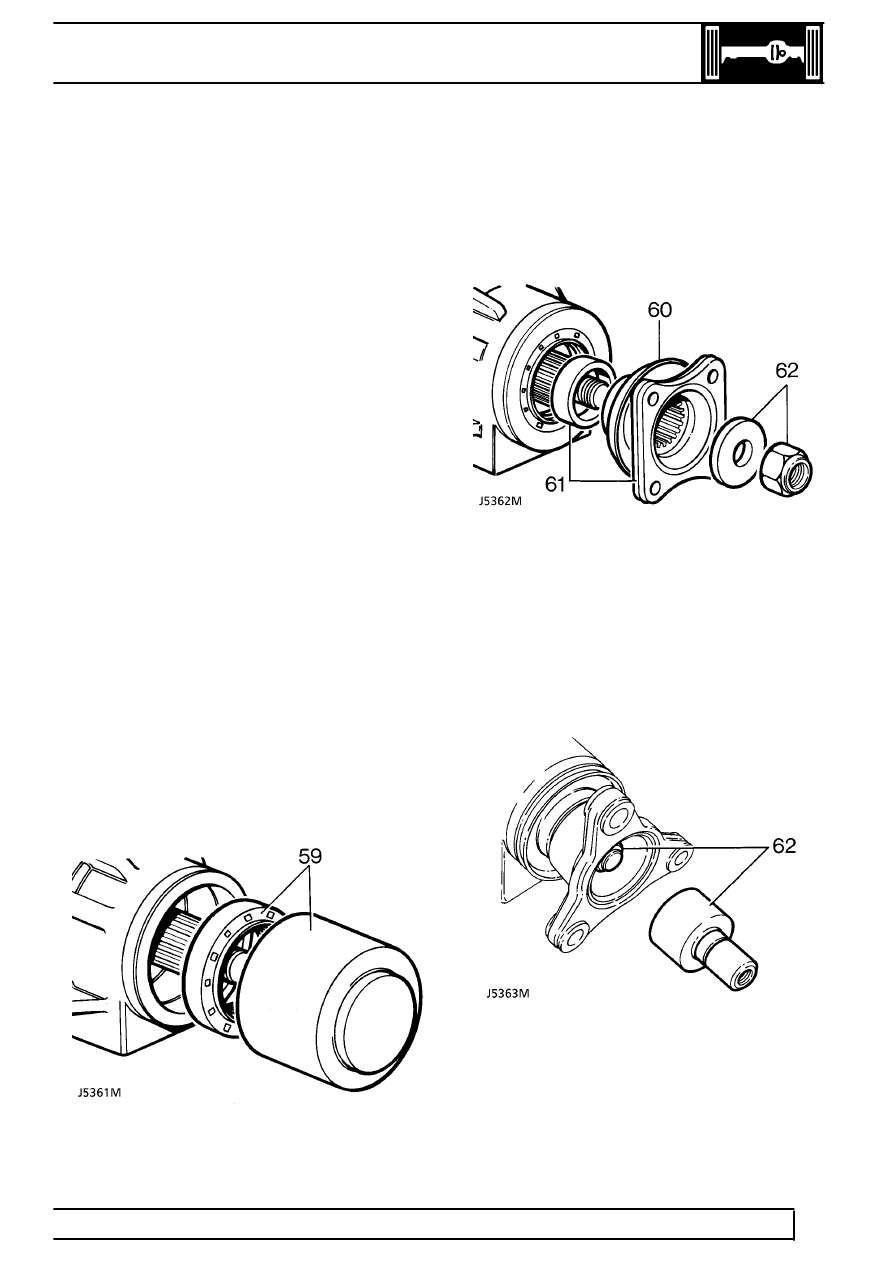

Fitting Pinion Oil Seal

59. Coat outer diameter of seal with grease. Fit seal

lip side leading flush with end face of housing
using tool LRT-51-001.

Fit pinion drive flange - front axle differential

60. Lubricate seal lips with axle oil.
61. Fit spacer and pinion drive flange to differential.
62. Secure flange with washer and nylon nut.

Tighten to

130 Nm.

Fit pinion drive flange - rear axle differential

60. Lubricate seal lips with axle oil.
61. Fit pinion drive flange to differential and secure

with washer and nylon nut. Tighten to

130 Nm.

62. Coat centralizing peg with Loctite 601 or 638 and

fit over pinion retaining nut in drive flange.
