Rear bumper valance (page 2 of 2)

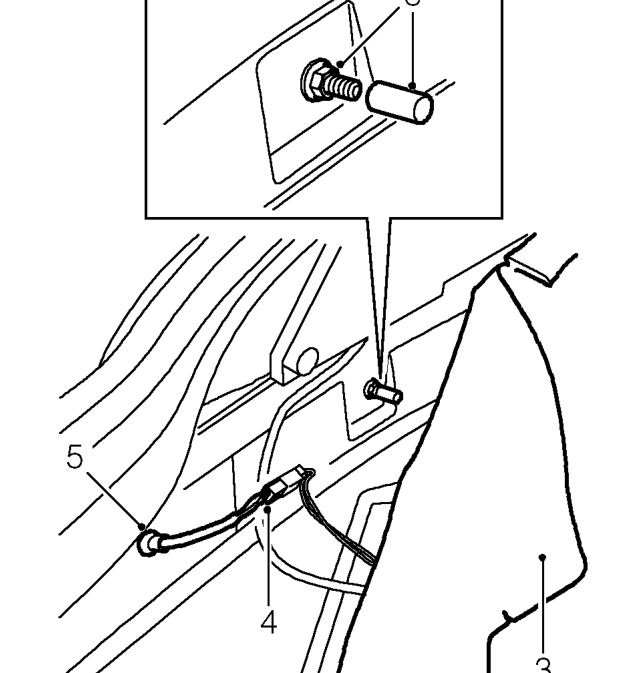

3. Open boot lid and position luggage compartment carpet aside.
4. Disconnect 2 number plate lamp multiplugs.
5. Release 2 grommets from body.
6. Remove 3 thread covers and 3 nuts securing bumper to body.
7. Remove bumper taking care to release wires from holes. Do not carry out further dismantling if component is removed for access only.

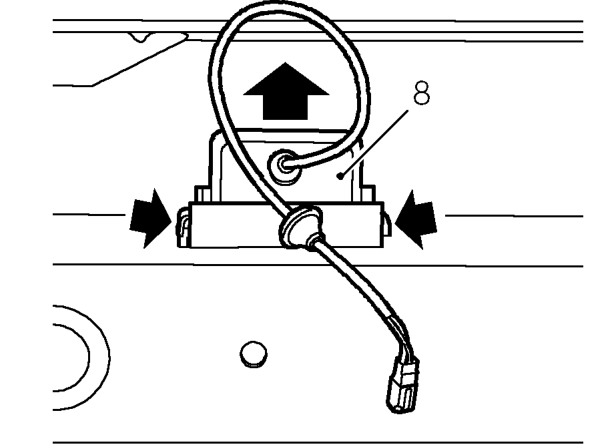

8. Release clip securing number plate lamp assembly to bumper and remove lamp.
9. Remove other number plate lamp.

Refit

1. Fit number plate lamps to bumper and engage clips.
2. Position wires through holes and align bumper to body fixings.
3. Fit nuts and tighten to 25 Nm.
4. Fit thread covers.
5. Connect multiplugs and position carpet.
6. Fit bolts and tighten to 25 Nm.
7. Secure bumper to wheel arches with screws.
