MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Squab cover (page 3 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components
BodySquab cover · page 3 of 3

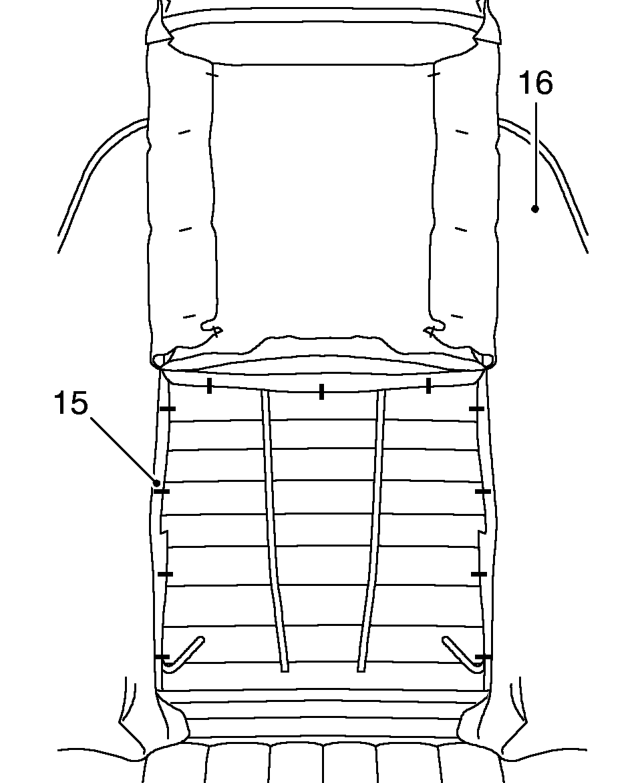

Diagram
  1. Remove 11 Hog rings securing squab cover to frame.
  2. Remove squab cover from pad. Do not carry out further dismantling if component is removed for access only.

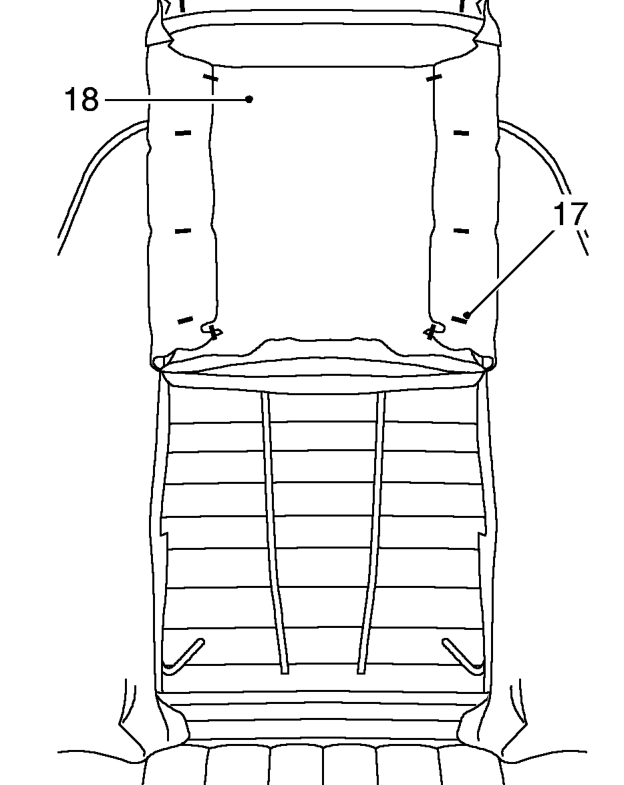

Remove squab cover from pad. Do not carry out further dismantling if component is removed
  1. Remove 12 Hog rings securing squab cover to centre pad.
  2. Remove seat squab, centre pad.

Rebuild

  1. Position seat squab, centre pad.
  2. Secure squab cover to centre pad with hog rings.
