Mini Mini Workshop Manual (1996-2000)06 · Engine management system - MEMS
06 · Engine

Heated oxygen sensor (ho2s) (page 2 of 2)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
Engine management system - MEMSHeated oxygen sensor (ho2s) · page 2 of 2

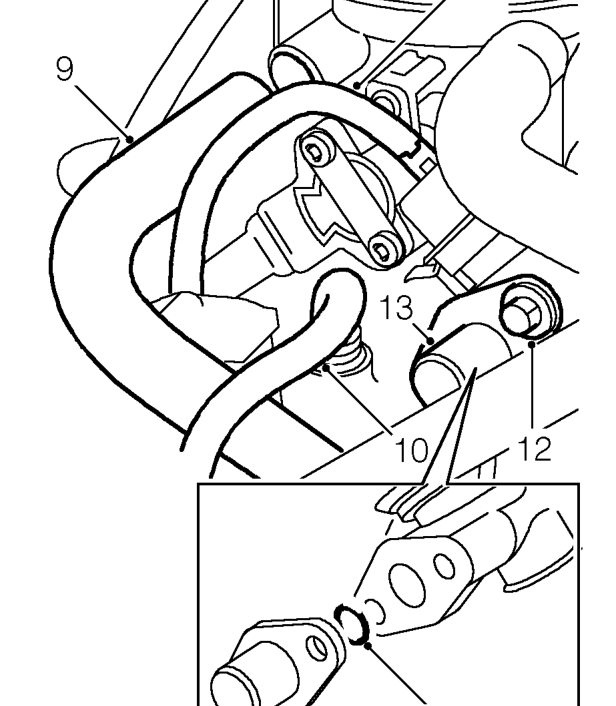

Diagram
  1. Disconnect breather hose from throttle body and position aside.
  2. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
  3. Release clip and disconnect vacuum hose from fuel pressure regulator.
  4. Remove 2 bolts securing fuel return pipe to fuel rail.
  5. Release fuel return pipe from fuel rail.
  6. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

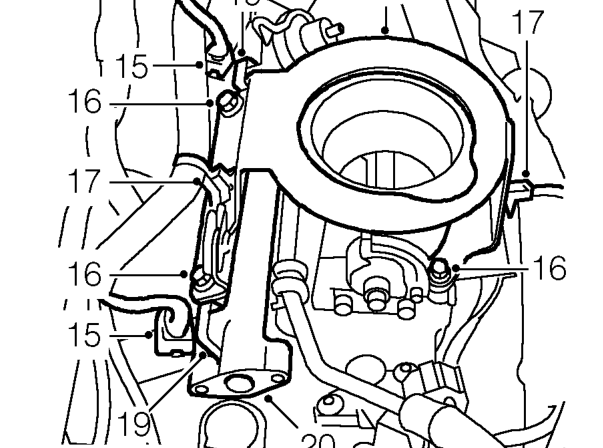

Remove and discard ’O’ ring.
  1. Disconnect 2 multiplugs from injectors.
  2. Remove 3 bolts securing air cleaner mounting bracket to fuel rail and inlet manifold.
  3. Release 2 clips securing harnesses to mounting bracket.
  4. Remove air cleaner mounting bracket.
  5. Remove 2 spring clips securing fuel rail to injectors.
  6. Release fuel rail from injectors and remove.
  7. Remove and discard ’O’ rings from injectors.
