CABLE ASSEMBLY - SPEEDOMETER - LOWER

Service repair no - 88.30.09

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

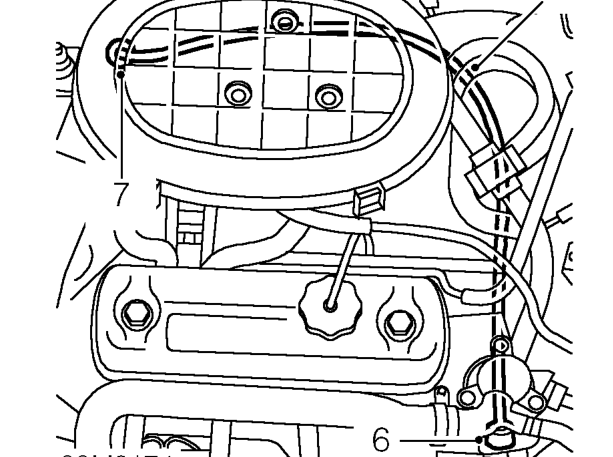

Cable assembly - speedometer - lower – Raise front of vehicle.
  1. Loosen knurled nut securing speedometer cable to gearbox.

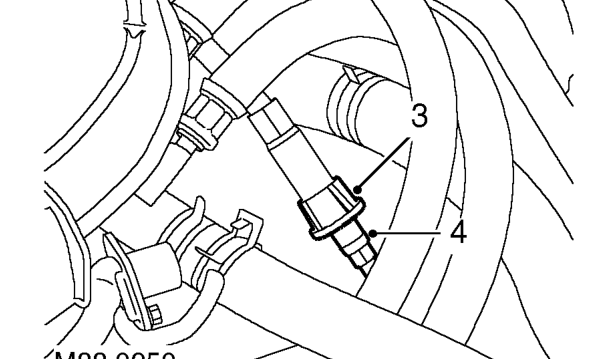

Cable assembly - speedometer - lower – Loosen knurled nut securing speedometer cable to gearbox.
  1. Slide back retaining clip and release lower cable from upper cable.
  2. Release cable and remove from vehicle.

Refit

  1. Fit cable to vehicle.
  2. Connect lower cable to upper cable and secure retaining clip.
  3. Ensure cable is routed correctly and is not kinked or twisted.
  4. Connect cable to gearbox and tighten nut.
  5. Remove stand(s) and lower vehicle.
  6. Connect battery earth lead.
