InstrumentsClock

CLOCK

Service repair no - 88.15.07

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.
Clock – Remove radio. See ELECTRICAL, Repairs.

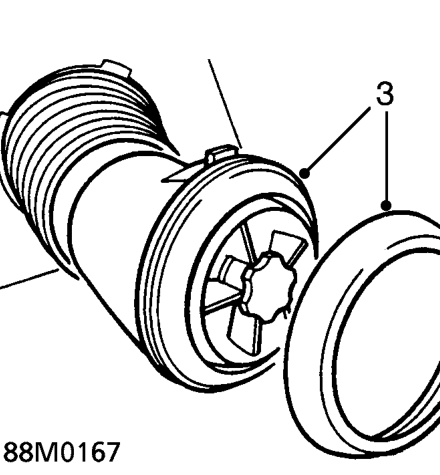

  1. Remove both fascia air vent locking rings. Release and remove air vents.
Clock – Remove both fascia air vent locking rings. Release and remove air vents.

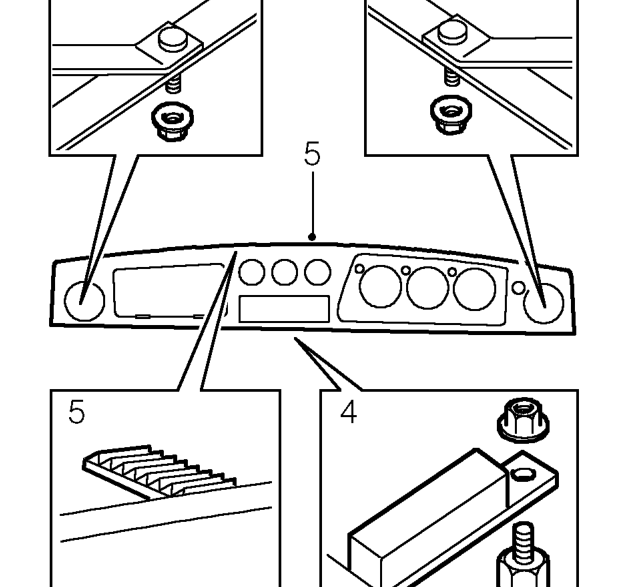

  1. Remove 3 nuts securing fascia panel retaining brackets to body.
  2. Release retaining brackets and carefully pull fascia forward for access to gauges.
Clock – Release retaining brackets and carefully pull fascia forward for access to gauges.

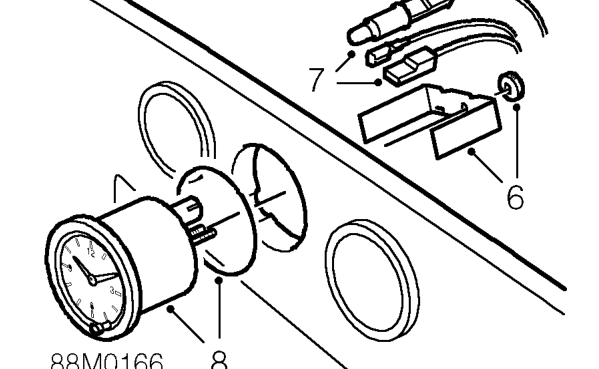

  1. Remove nut and release retainer from clock.
  2. Disconnect lucar connectors and illumination lamp from clock.
  3. Remove clock.

Refit

  1. Position clock, identify and connect leads. Connect illumination lamp.
  2. Position clock to fascia, fit retainer and tighten nut.
  3. Position fascia panel and tighten nuts.
  4. Fit air vents and secure locking rings.
  5. Fit radio. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.
