InstrumentsInstrument panel window

INSTRUMENT PANEL WINDOW

Service repair no - 88.20.16

Remove

  1. Remove fascia panel. See BODY, Interior trim components.

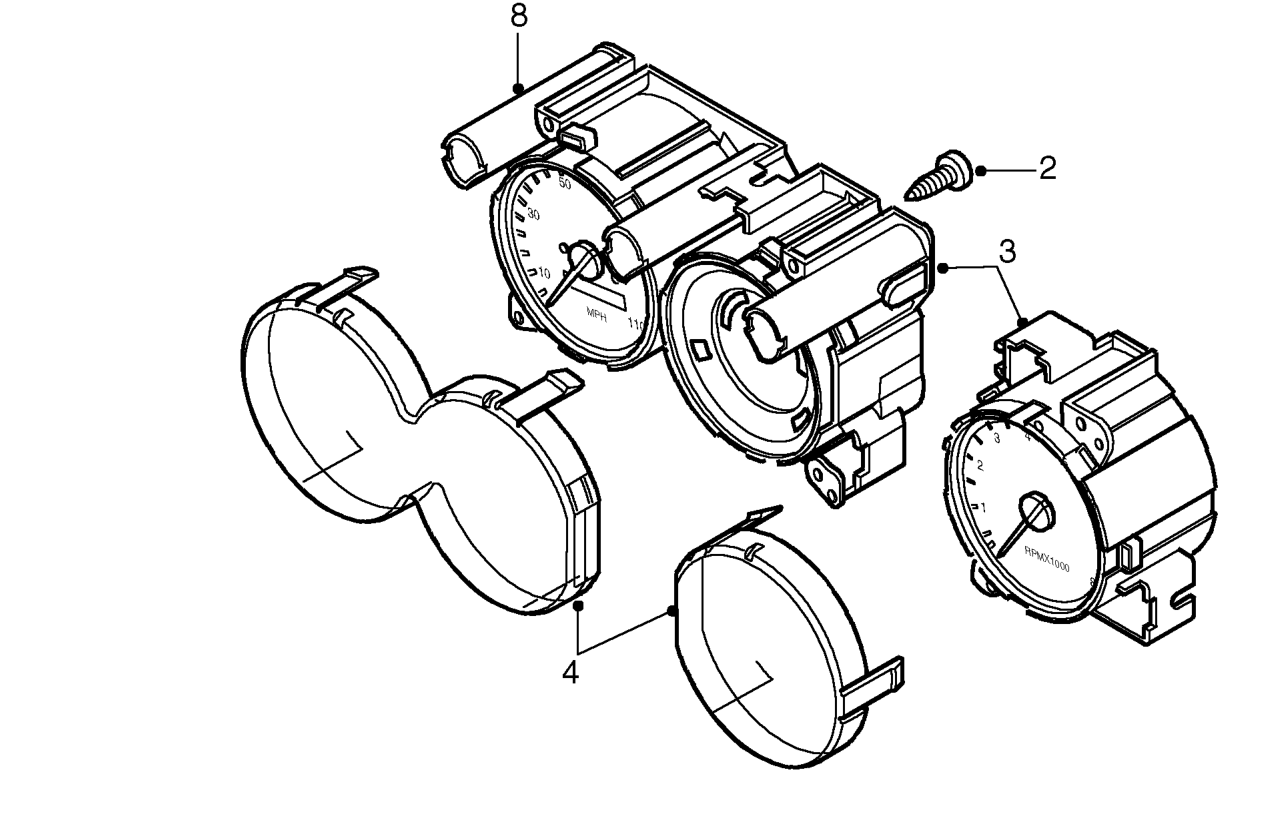

Instrument panel window – Remove fascia panel. See BODY, Interior trim components.
  1. Remove 6 screws securing instrument housing to panel.
  2. Remove instrument housing and release tachometer from housing.
  3. Release retainers, remove window from speedometer housing.

Refit

  1. Fit window to speedometer to housing.
  2. Fit tachometer to housing.
  3. Fit instrument housing to panel. Fit and tighten screws.
  4. Fit fascia panel. See BODY, Interior trim components.
