CABLE ASSEMBLY - SPEEDOMETER - UPPER

Service repair no - 88.30.08

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove radio. See ELECTRICAL, Repairs.

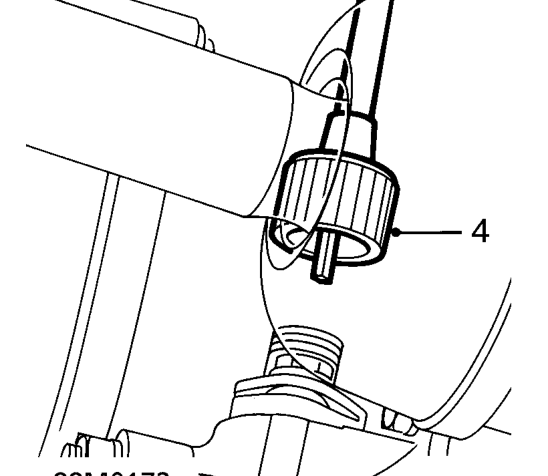

Cable assembly - speedometer - upper – Remove radio. See ELECTRICAL, Repairs.
  1. Using the radio aperture for access disconnect speedometer cable from rear of instrument pack.
  2. Release cable grommet from bulkhead.

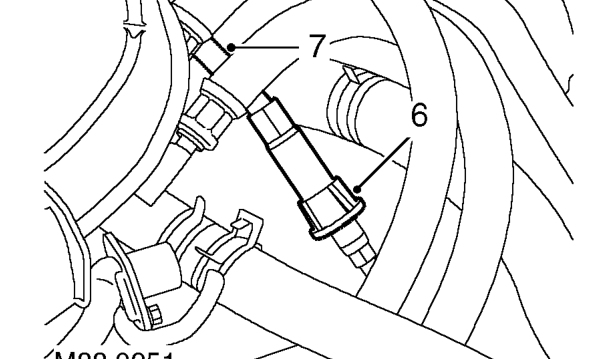

Cable assembly - speedometer - upper – Release cable grommet from bulkhead.
  1. Slide back retaining clip and release upper cable from lower cable.
  2. Release cable and remove from vehicle.

Refit

  1. Fit cable to vehicle.
  2. Connect upper cable to lowercable and secure retaining clip.
  3. Ensure cable is routed correctly and is not kinked or twisted.
  4. Connect cable to instrument pack and secure grommet.
  5. Fit radio. See ELECTRICAL, Repairs.
  6. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  7. Connect battery earth lead.
