SPEEDOMETER

Service repair no - 88.30.01

Remove

  1. Remove printed circuit See this section.

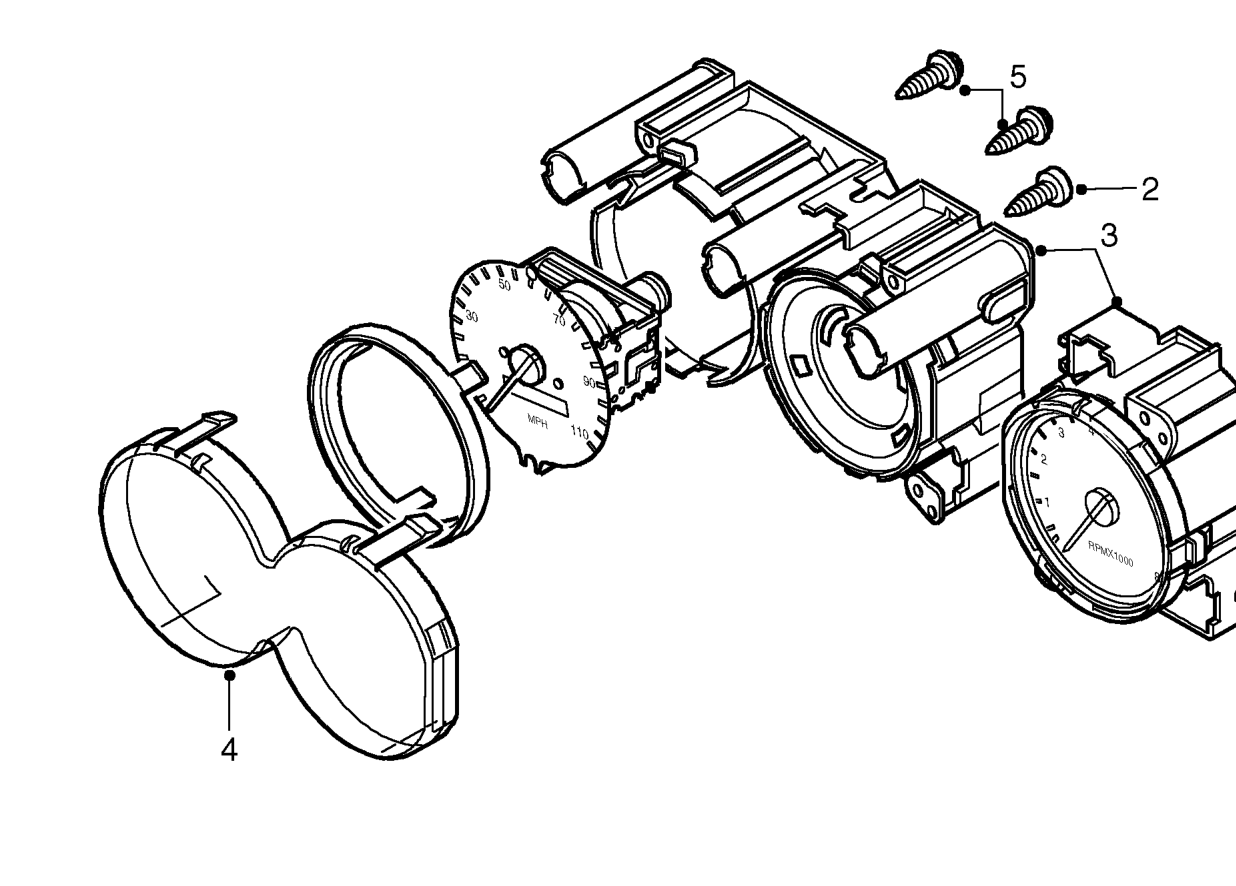

Speedometer – Remove printed circuit See this section.
  1. Remove 6 screws securing instrument housing to panel.
  2. Remove instrument housing and release tachometer from housing.
  3. Release retainers, remove lens and surround from speedometer housing.
  4. Remove 2 screws and remove speedometer from housing.

Refit

  1. Fit speedometer to housing. Fit and tighten screws.
  2. Fit surround and lens to housing.
  3. Fit tachometer to housing.
  4. Fit housing to instrument panel. Fit and tighten screws.
  5. Fit printed circuit. See this section.
