TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove fascia panel. See BODY, Interior trim components.

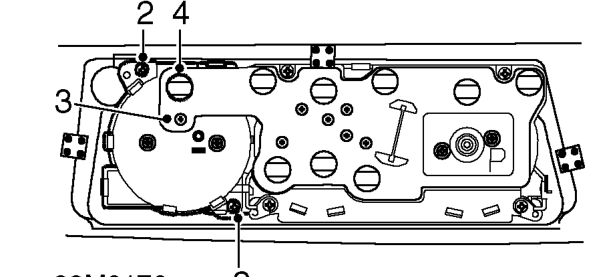

Tachometer – Remove fascia panel. See BODY, Interior trim components.
  1. Remove screw securing printed circuit to tachometer.
  2. Remove 2 screws securing tachometer housing to instrument panel and remove housing.
  3. Remove illumination light bulb from tachometer.

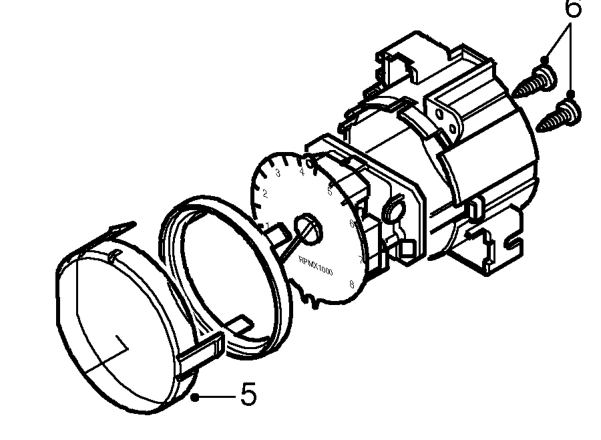

Tachometer – Remove illumination light bulb from tachometer.
  1. Release retainers, remove lens and surround from housing.
  2. Remove 2 screws and remove tachometer from housing.

Refit

  1. Fit tachometer to housing. Fit and tighten screws.
  2. Fit surround and lens to housing.
  3. Fit housing to instrument panel. Fit and tighten screws.
  4. Align printed circuit to tachometer, fit and tighten screw.
  5. Fit illumination bulb.
  6. Fit fascia panel. See BODY, Interior trim components.
