BATTERY CONDITION INDICATOR

Service repair no - 88.10.07

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.

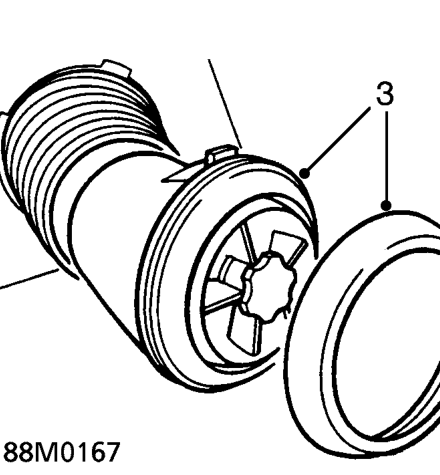

Battery condition indicator – Remove radio. See ELECTRICAL, Repairs.
  1. Remove both fascia air vent locking rings. Release and remove air vents.

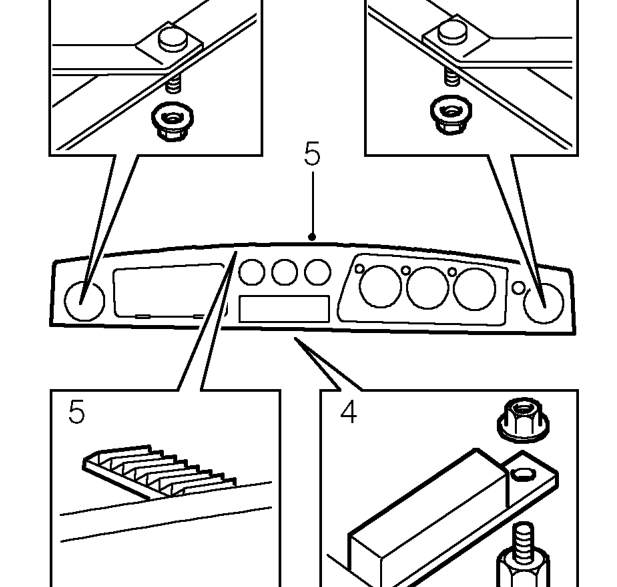

Battery condition indicator – Remove both fascia air vent locking rings. Release and remove air vents.
  1. Remove 3 nuts securing fascia panel retaining brackets to body.
  2. Release retaining brackets and carefully pull fascia forward for access to gauges.

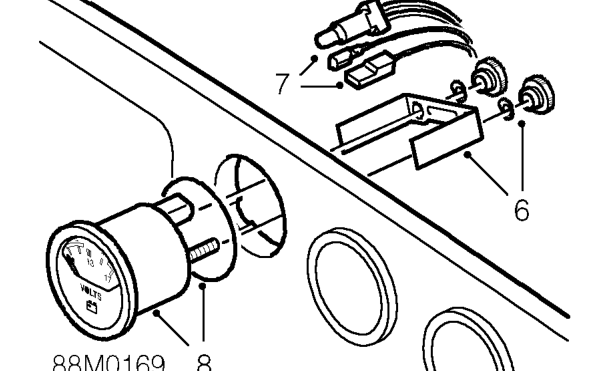

Battery condition indicator – Release retaining brackets and carefully pull fascia forward for access to gauges.
  1. Remove nuts from battery condition indicator gauge and collect retainer.
  2. Disconnect Lucar connectors and illumination lamp from gauge.
  3. Remove battery condition indicator gauge.

Refit

  1. Position gauge, identify and connect leads. Connect illumination lamp.
  2. Position gauge to fascia, fit retainer and tighten nuts.
  3. Position fascia panel and tighten nuts.
  4. Fit air vents and secure locking rings.
  5. Fit radio. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.
