Oil temperature gauge sensor

OIL TEMPERATURE GAUGE SENSOR

Service repair no - 88.25.21

Remove

1. Remove front grille. See BODY, Exterior fittings.

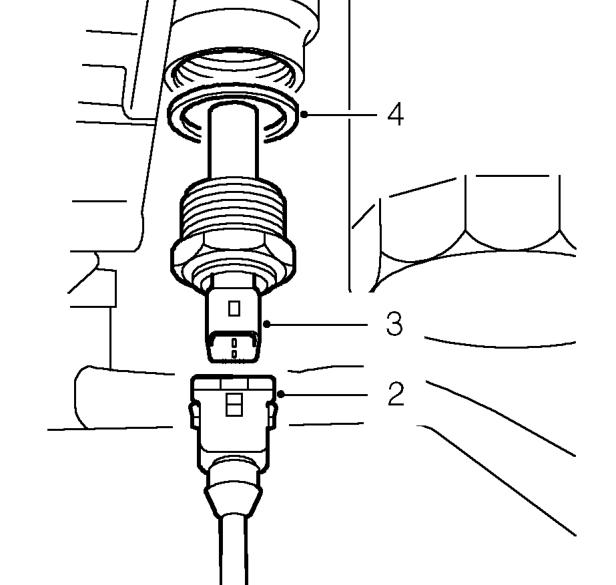

2. Disconnect multiplug from sensor.
3. Loosen oil temperature gauge sensor and remove.
4. Remove and discard sealing washer.

Refit

1. Clean mating face of oil temperature gauge sensor and cylinder block.
2. Fit new sealing washer to sensor.
3. Fit sensor and tighten to 60 Nm.
4. Connect multiplug to sensor.
5. Fit front grille. See BODY, Exterior fittings.

FUEL GAUGE TANK UNIT

Service repair no - 88.25.32

Remove

1. Drain fuel tank. See FUEL DELIVERY SYSTEM, Repairs.

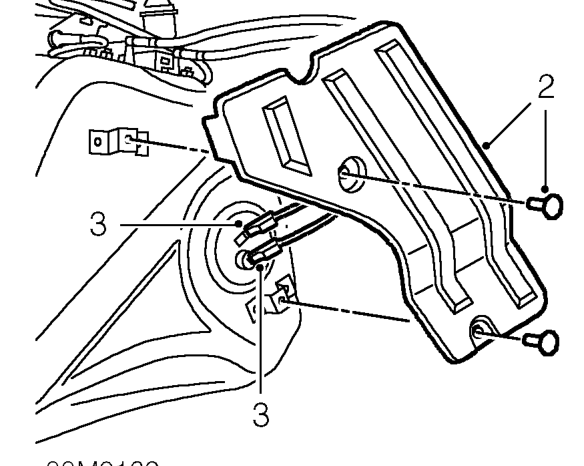

2. Remove studs securing fuel tank side cover and remove cover.
3. Disconnect 2 Lucars from tank unit.

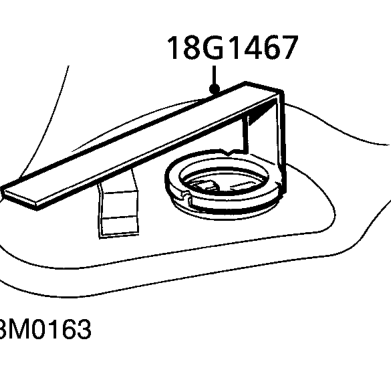

4. Using tool 18G 1467 remove the tank unit retaining ring.
5. Remove the tank unit and discard seal.

Refit

1. Clean tank and tank unit mating faces.
2. Using a new seal locate the tank unit.
3. Position retaining ring and secure with tool 18G 1467.
4. Connect 2 Lucars to tank unit.
5. Fit fuel tank side cover and secure with studs.
6. Return fuel to fuel tank.
