ABS sensor - front (page 2 of 2)

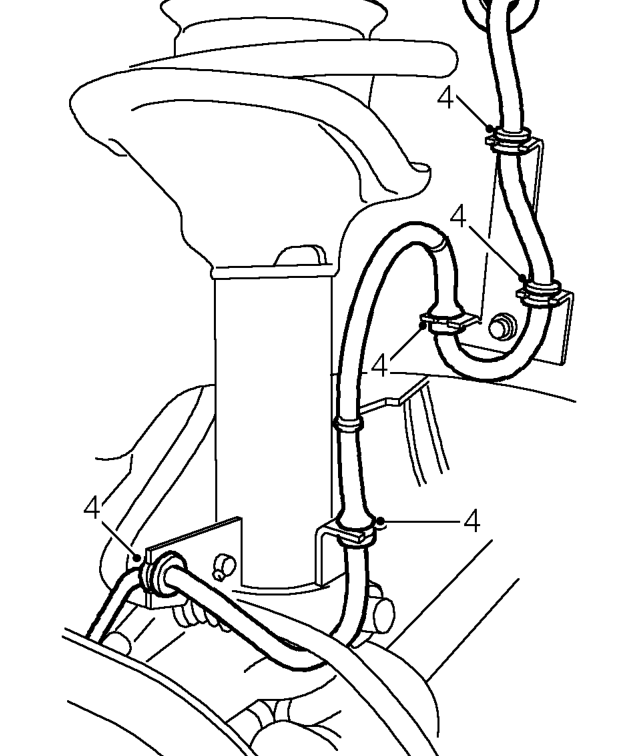

4. Release sensor harness from 5 clips in wheel arch.

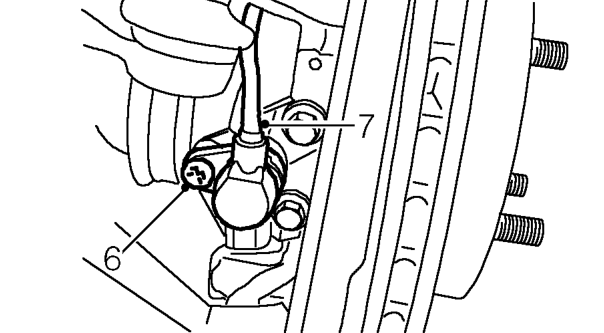

5. Release grommet and withdraw harness into wheel arch.

6. Remove screw securing sensor to hub.
7. Remove sensor and harness.

Refit

1. Clean mating surfaces of sensor and hub.
2. Fit sensor to hub and tighten screw to 6 Nm.
3. Pass harness through body and locate grommet.
4. Secure harness to clips in wheel arch.
5. Ensuring ’O’ ring is in place, connect sensor harness multiplug and secure multiplug in clip.
6. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
7. Remove stand(s) and lower vehicle.
8. To ensure correct operation, the system MUST be tested using TestBook.
