Clutch slave cylinder - ’t’ series (page 2 of 2)

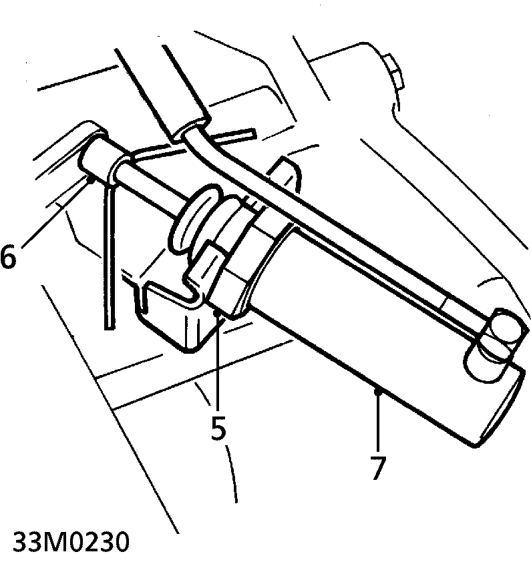

5. Remove locking collar securing clutch slave cylinder to gearbox mounting bracket.
6. Release clutch slave cylinder from gearbox mounting bracket and clutch release lever.
7. Remove clutch slave cylinder.

Refit

1. Clean clutch release lever and clutch slave cylinder.
2. Fit clutch slave cylinder to clutch release lever.
3. Locate clutch slave cylinder on gearbox mounting bracket and secure with locking collar.
4. Clean 2 ends of clutch hydraulic pipe.
5. Connect 2 halves of clutch hydraulic pipe, ensure 2 halves of pipe are correctly engaged by trying to pull hydraulic pipes away from connector.
6. Secure clutch hydraulic pipe to clip on harness.
7. Secure clutch hydraulic pipe to slave cylinder mounting bracket clip.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
