All models. (page 2 of 2)

6. Position container beneath gearbox to catch fluid loss.
7. Remove gaiter from selector shaft.

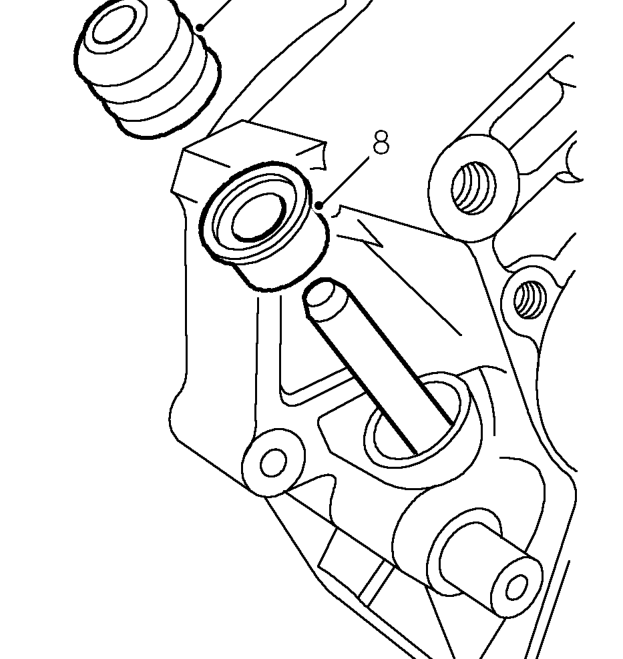

8. Remove and discard selector shaft oil seal.

Refit

1. Clean selector shaft.
2. Using a suitable piece of tubing, fit new selector shaft oil seal.
3. Fit gaiter to selector shaft and ensure lip on gaiter is located in groove on gearbox casing.
4. Remove container from beneath gearbox.
5. Connect selector rod to shaft and align holes.
6. Fit new roll pin securing selector rod to shaft and fit roll pin retaining clip.
7. Fit washers to gear change steady bar and connect to gearbox.
8. Fit bolt securing gear change steady bar to gearbox and tighten to 10 Nm.
9. Remove stand(s) and lower vehicle.
10. Top-up gearbox oil. See MAINTENANCEMaintenance.
