Rover 400 Workshop Manual (1995-2000)19 · Manual gearbox - PG1
19 · Transmission

Models with air conditioning fitted.

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Models with air conditioning fitted.
Manual gearbox - PG1Models with air conditioning fitted. · page 1 of 2

Models with air conditioning fitted.

Models with air conditioning fitted.

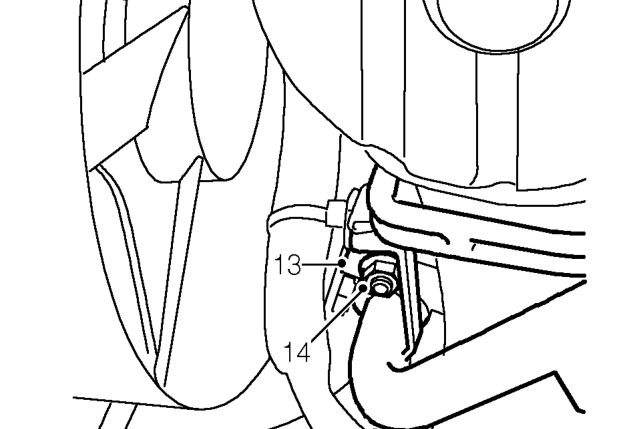

  1. Remove bolt air conditioning pipe bracket to to coolant rail bracket at gearbox mounting plate.

All models.

  1. Remove nut securing coolant rail to bracket on gearbox mounting plate.
  2. Raise coolant rail sufficiently to clear gearbox housing.
All models. – Raise coolant rail sufficiently to clear gearbox housing.

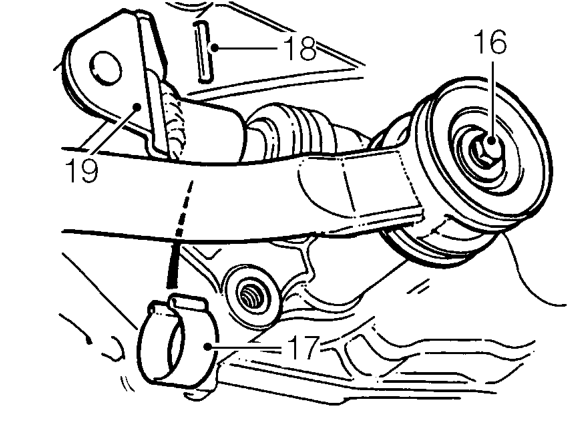

  1. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
  4. Release selector rod from selector shaft.
  5. Tie selector rod and steady bar aside.
  6. Remove both road wheels.
  7. Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.
All models. – Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.

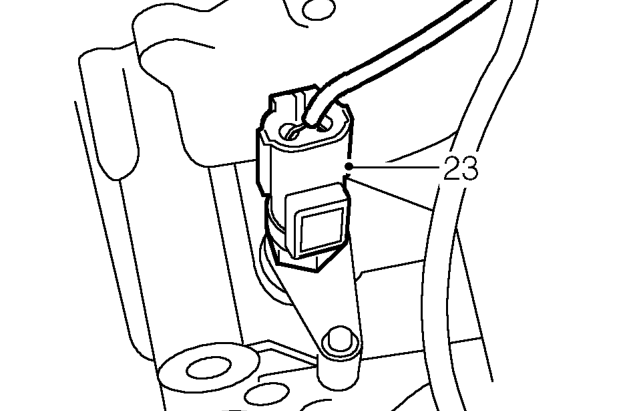

  1. Disconnect multiplug from vehicle speed sensor.
  2. Fit wooden block to jack and position jack to support engine.
  3. Release fuel filter from bracket and move aside.
