Manual gearbox - PG1Gearbox - ’l’ series

GEARBOX - ’L’ SERIES

Service repair no - 37.20.02.99

Remove

  1. Drain gearbox oil. See MAINTENANCEMaintenance.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
Gearbox - ’l’ series – Remove starter motor. See ELECTRICAL, Repairs.

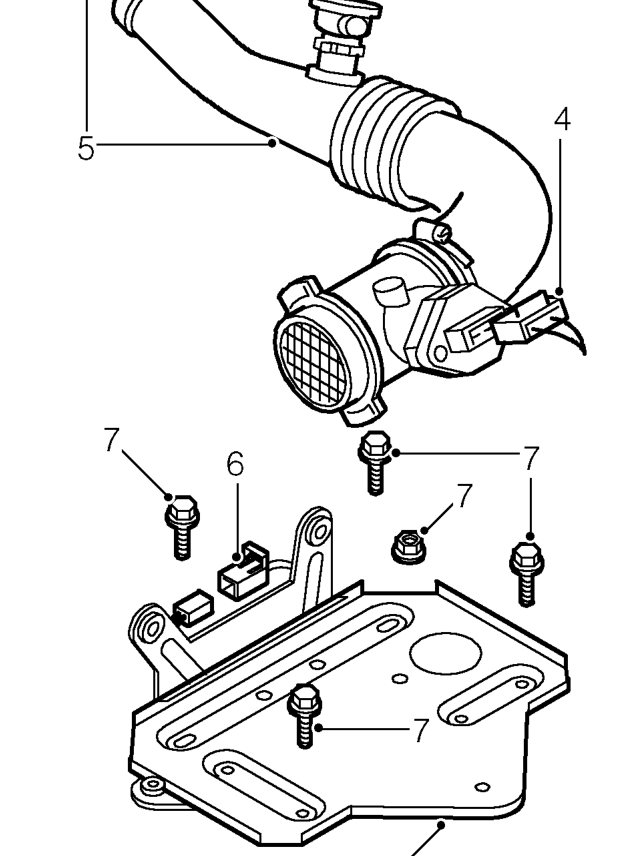

  1. Disconnect multiplug from MAF sensor.
  2. Loosen clip and remove air hose from turbocharger.
  3. Disconnect dim dip resistor multiplug from engine harness.
  4. Remove 4 bolts and a nut securing battery tray.
  5. Remove battery tray.
Gearbox - ’l’ series – Remove battery tray.

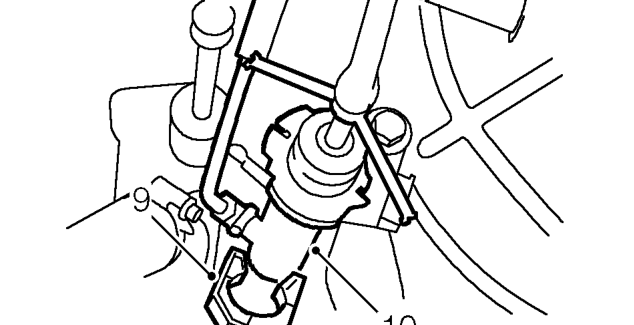

  1. Remove ’C’ clip securing clutch slave cylinder to bracket.
  2. Compress push rod and release cylinder from bracket. Position cylinder aside.
Gearbox - ’l’ series – Compress push rod and release cylinder from bracket. Position cylinder aside.

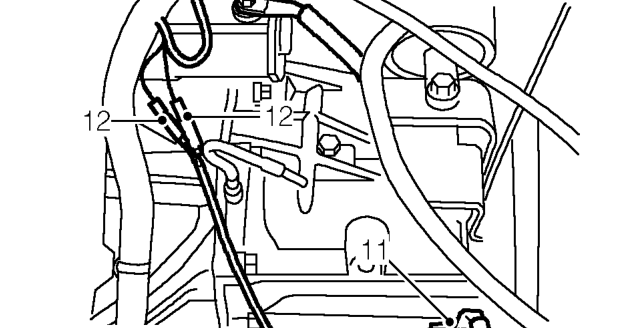

  1. Remove bolt securing earth leads to gearbox.
  2. Disconnect 2 reverse lamp switch leads from engine harness.
