Manual gearbox - PG1Gearbox - ’t’ series · page 1 of 5

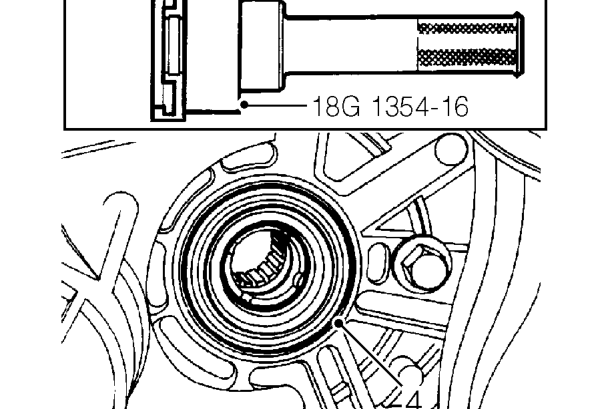

Diagram
  1. With sealing lip facing towards differential housing, locate NEW seal on tool 18G 1354 and 18G 1354-16.
  2. Carefully drift oil seal into differential housing until it is fully seated in recess.
Carefully drift oil seal into differential housing until it is fully seated in recess.

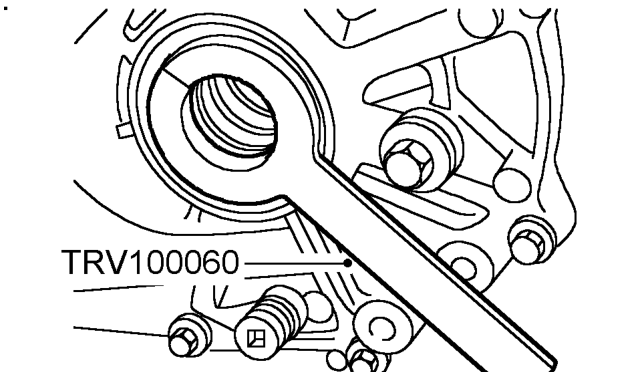

  1. Fully insert oil seal protector tool (Unipart TRV 100060) into differential oil seal so that oil seal lip is protected, ensure split end is butted correctly.
  2. Refit RH drive shaft. See DRIVE SHAFTS, Repairs.

GEARBOX - ’T’ SERIES

Service repair no - 37.20.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Drain gearbox oil. See Adjustments.
  3. Remove underbelly panel. See BODY, Exterior fittings.
  4. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  5. Remove starter motor. See ELECTRICAL, Repairs.

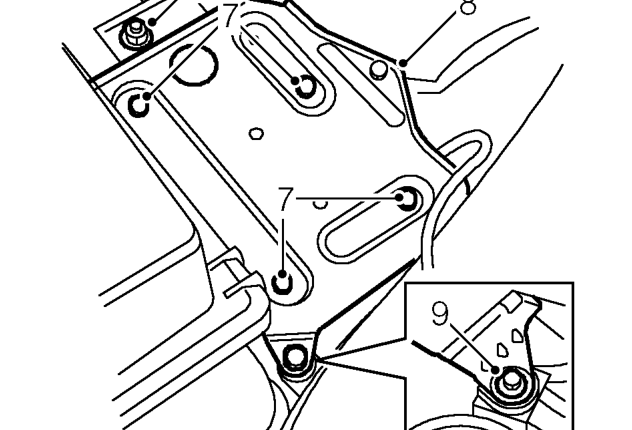

Gearbox - ’t’ series – Remove starter motor. See ELECTRICAL, Repairs.
  1. Remove 4 bolts and nut securing battery tray to mounting bracket and engine LH mounting.
  2. Remove battery tray.
  3. Remove bolt securing air intake hose to battery tray mounting bracket.
