Reverse lamp switch - ’l’ series

REVERSE LAMP SWITCH - ’L’ SERIES

Service repair no - 37.27.01

Remove

1. Remove air cleaner. See FUEL DELIVERY SYSTEM, Repairs.

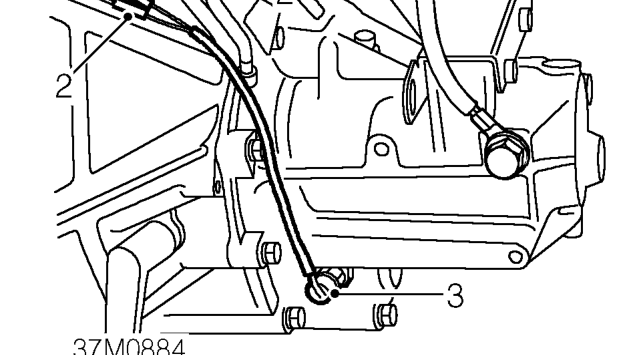

2. Disconnect reverse lamp switch leads from engine harness.
3. Remove reverse lamp switch and discard sealing washer.

Refit

1. Clean mating faces of reverse lamp switch and gearbox.
2. Fit new sealing washer to reverse lamp switch.
3. Fit reverse lamp switch and tighten to 25 Nm.
4. Connect reverse lamp switch leads.
5. Fit air cleaner. See FUEL DELIVERY SYSTEM, Repairs.

DIFFERENTIAL LH OIL SEAL - ’L’ SERIES

Service repair no - 54.10.18

Remove

1. Remove LH drive shaft. See DRIVE SHAFTS, Repairs.
2. Carefully prise out oil seal from differential housing.

CAUTION: Two types of oil seal have been fitted to the differential of the PG1 gearbox, retain seal removed for reference when selecting new seals.

Refit

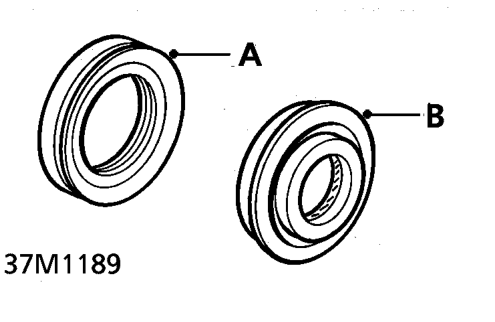

’A’ - original oil seal ’B’ - later type oil seal

NOTE: The differential oil seals have been modified on later type gearboxes. The seals are identified above and the later type gearboxes can be identified by machined seal location faces. The two types of seal are not interchangeable.
