Manual gearbox - PG1Gearbox - ’t’ series · page 2 of 5

10. Loosen 2 bolts securing battery tray mounting bracket to body.

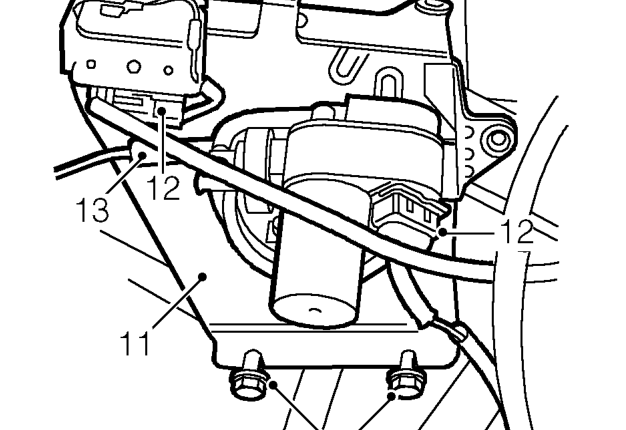

11. Release battery tray mounting bracket from fixings.
12. Disconnect multiplugs from dim dip resistor and cruise control vacuum control unit.
13. Release vacuum hose from cruise control vacuum control unit and remove battery tray mounting bracket assembly.
14. Release clutch hydraulic pipe from slave cylinder mounting bracket clip.

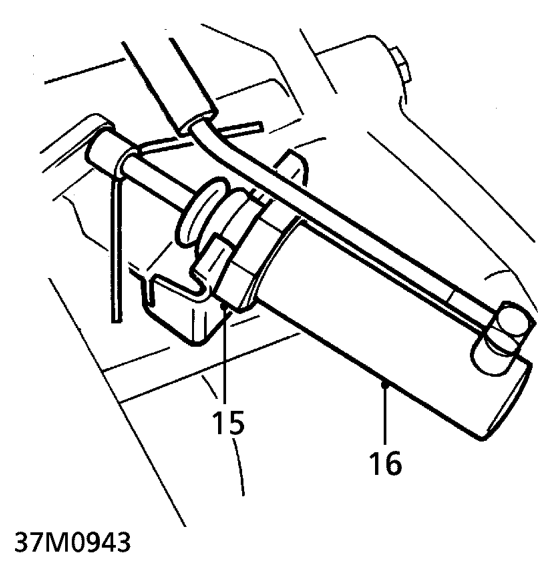

15. Remove locking collar securing clutch slave cylinder to gearbox mounting bracket.
16. Release clutch slave cylinder from gearbox mounting bracket and clutch release lever and position aside.

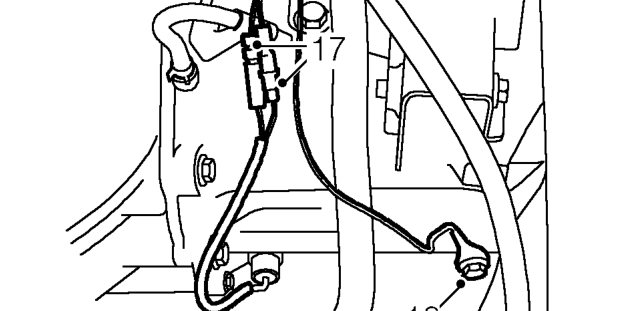

17. Disconnect reverse lamp switch leads.
18. Remove bolt securing earth lead to gearbox and position leads aside.
19. Release coolant hose from engine LH mounting bracket.

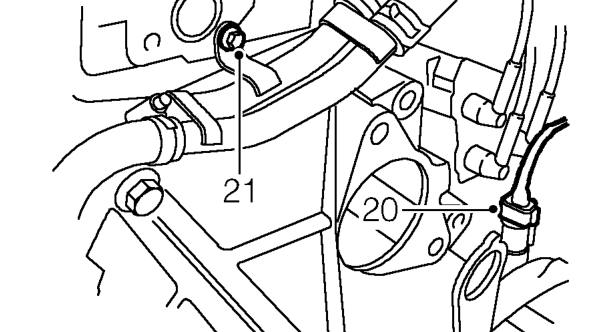

20. Disconnect multiplug from speed sensor.
21. Remove bolt securing coolant rail to cylinder head.
