Rover 400 Workshop Manual (1995-2000)19 · Manual gearbox - PG1
19 · Transmission

Gearbox - ’t’ series (page 4 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearbox - PG1Gearbox - ’t’ series · page 4 of 5
Diagram

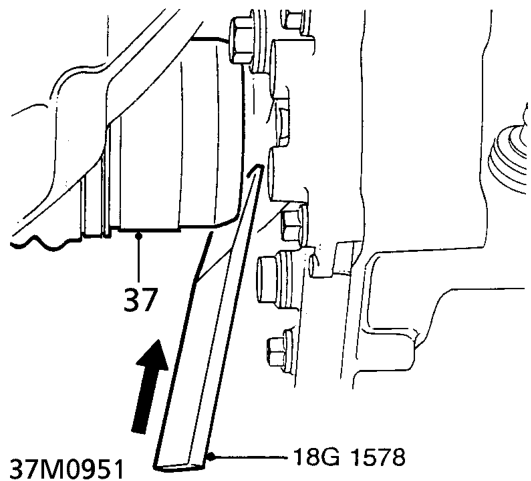

  1. Insert tool 18G 1578 between drive shaft housing and gearbox to disengage drive shaft circlip from differential. Withdraw drive shaft from differential by pulling on the inboard housing.
Insert tool 18G 1578 between drive shaft housing and gearbox to disengage drive shaft circ

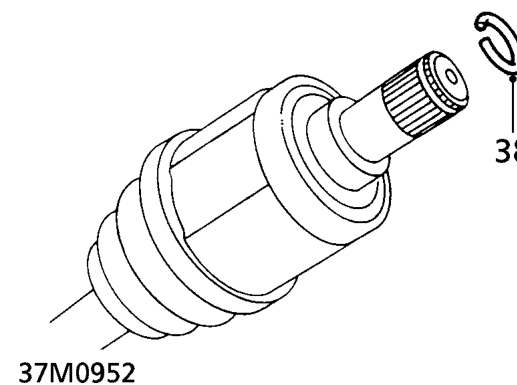

  1. Remove and discard circlip from LH drive shaft.
  2. Fit plastic bag over end of drive shaft. Retain drive shaft clear of gearbox.
  3. Repeat above operations 29 to 39 and disconnect RH suspension and drive shaft.
  4. Support engine on jack.

CAUTION: To prevent damage to sump, position a wooden block or hard rubber pad to jack.

Support engine on jack.

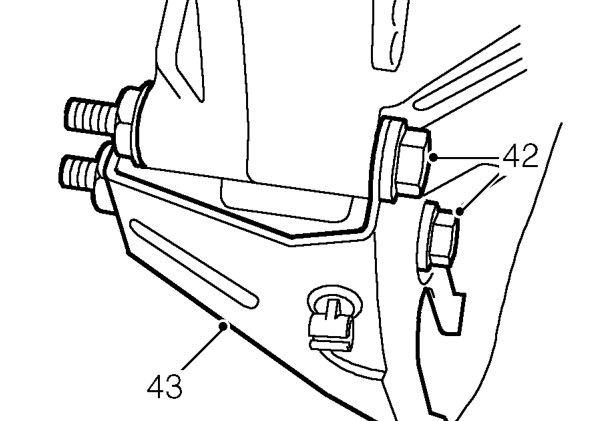

  1. Remove 2 nuts from bolts securing clutch slave cylinder mounting bracket.
  2. Remove clutch slave cylinder mounting bracket.
Remove clutch slave cylinder mounting bracket.

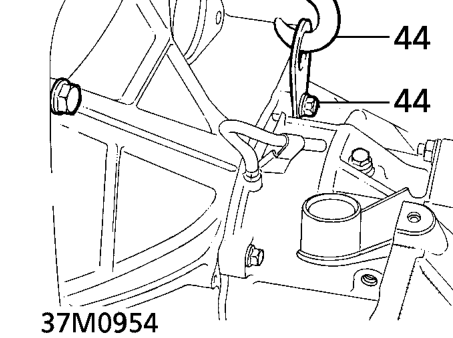

  1. Remove bolt securing gear case to differential housing, position suitable lifting eye, refit bolt and tighten.
