Manual gearbox - PG1Models with air conditioning fitted. · page 2 of 2

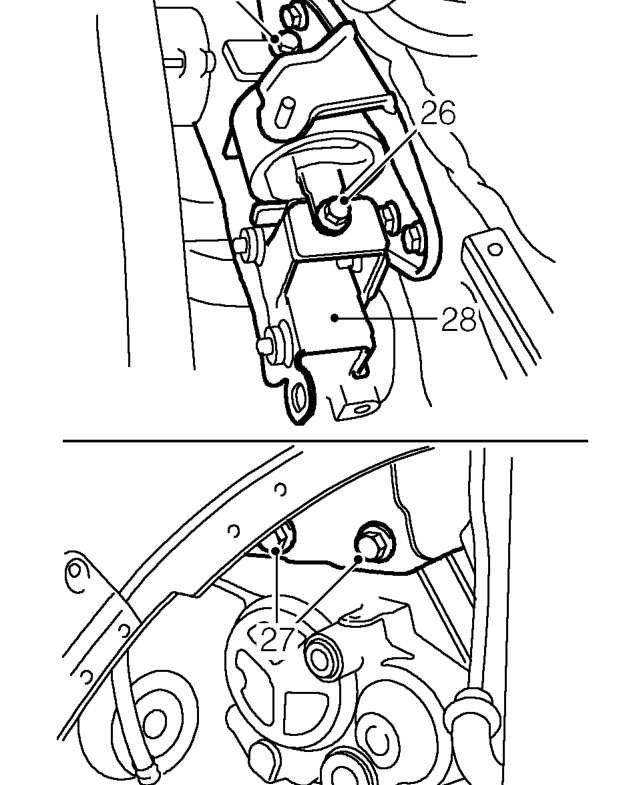

26. Remove 2 bolts securing LH engine mounting to bracket on gearbox.
27. Lower engine and gearbox assembly for access and remove 2 bolts securing mounting bracket to gearbox.
28. Remove mounting bracket from gearbox.

29. Remove bolt securing gearbox casing to differential housing.
30. Fit a suitable lifting eye to gearbox and secure with bolt.
31. Connect suitable lifting equipment to lifting eye.
32. Take weight of gearbox with lifting equipment.

33. Remove 4 bolts securing gearbox to mounting plate.
