Brake system bleed - ABS 5 (Brakes) (page 2 of 2)

Make

Rover

Model

600 Repair Manual Supplement

Year

1993–1999

Section

Adjustments

BrakesBrake system bleed - ABS 5 · page 2 of 2

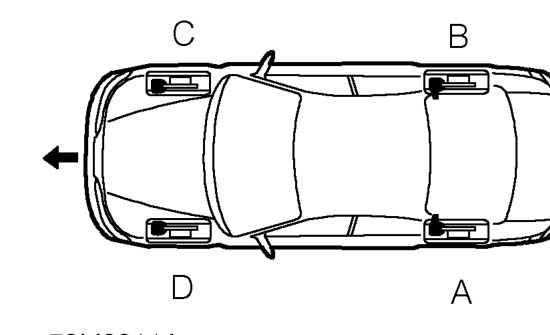

• Bleed sequence:
• LH rear to RH rear
• RH front to LH front

9. Repeat procedure at each wheel in the sequence shown.

• CAUTION: Braking efficiency may be
• seriously impaired if wrong bleed
• sequence is used.

10. Remove bleed tube. Apply brakes and check for leakage.
11. Remove stand(s) and lower vehicle.
12. Road test vehicle and carry out 2 ABS invoked stops.
13. Repeat bleed procedure.
14. Check brake pedal for short firm travel when applied.
15. Repeat bleed procedure if necessary.

11 Brakes
