ABS HYDRAULIC MODULATOR - 2.0 AND 2.3

Service repair no - 70.25.12

Remove

  1. Disconnect battery earth lead.

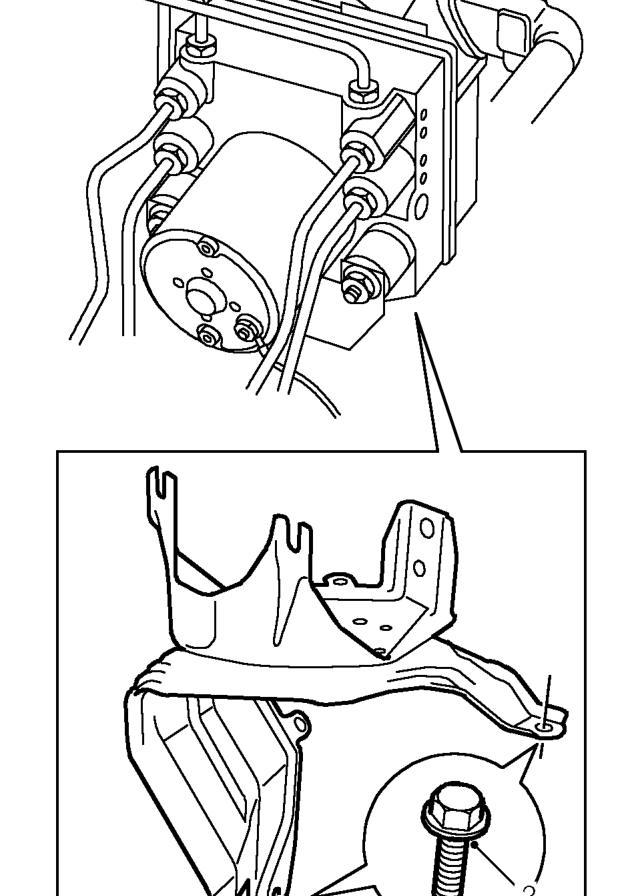

Abs hydraulic modulator - 2.0 and 2.3 – Disconnect battery earth lead.
  1. Remove 3 bolts securing modulator bracket to body.
  2. Position cloth under modulator to absorb fluid spillage.
  • CAUTION: Do not allow brake fluid to
  • contact paint finished surfaces as paint
  • may be damaged. If spilled, remove fluid
  • and clean area with clean warm water.

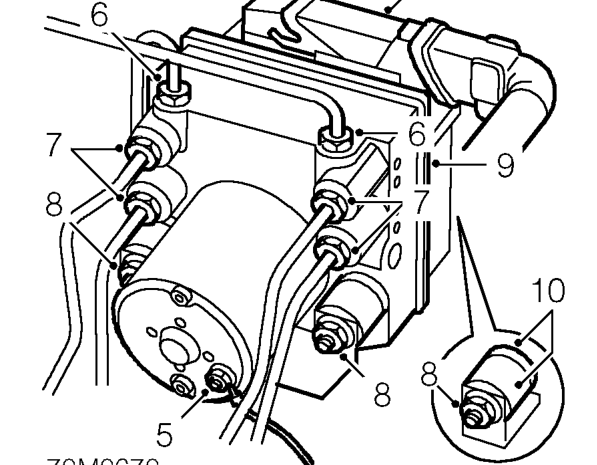

Abs hydraulic modulator - 2.0 and 2.3 – Position cloth under modulator to absorb fluid spillage.
  1. Raise clip and disconnect multiplug from modulator ECU.
  2. Remove nut securing earth lead to motor and disconnect lead.
  3. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

  1. Disconnect 4 outlet brake pipe unions from modulator.

CAUTION: Plug the connections.

  1. Slacken 3 nuts securing modulator to mounting bracket.
  2. Release modulator from mounting bracket and remove modulator. Do not carry out further dismantling if component is removed for access only.
  3. Remove 3 mounting studs and mounting rubbers from modulator.
  4. Fit mounting rubbers and studs to new modulator.
