ABS ECU - ’l’ series

ABS ECU - ’L’ SERIES

Service repair no - 70.25.34

Remove

1. Remove battery. See ELECTRICAL, Repairs.

2. Lift clip and disconnect multiplug from ABS ECU.

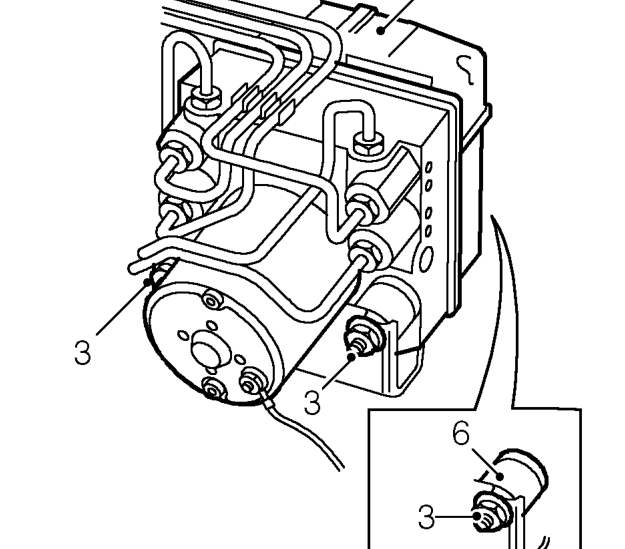

3. Loosen 2 front nuts and remove rear nut securing modulator assembly to bracket.
4. Raise modulator sufficiently only to remove rear mounting.
5. Support modulator using a block of wood.
6. Remove rear mounting rubber from spigot.

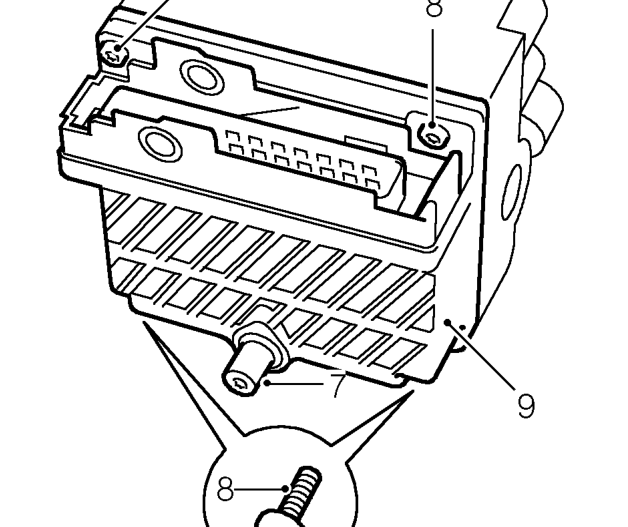

7. Remove mounting spigot from ECU using a TX30 adaptor.
8. Remove 4 TX25 screws securing ECU to modulator.
9. Remove ECU from modulator.

• CAUTION: Take care to prevent the entry
• of foreign matter into the rear of the
• modulator.

Refit

1. Ensure ECU mating face on modulator is clean and seal is not damaged.
2. Connect 2 multiplugs and fit ECU to modulator.
3. Fit mounting spigot to ECU. DO NOT tighten.
4. Fit screws securing ECU to modulator and tighten to 8 Nm.
5. Tighten mounting spigot to 15 Nm.
6. Fit rubber to mounting spigot.
7. Fit stud to mounting spigot.
8. Remove block of wood and reposition modulator in mounting bracket.
9. Tighten nuts securing modulator to mounting bracket to 10 Nm.
10. Connect multiplug to ECU and secure clip.
11. Fit battery. See ELECTRICAL, Repairs.
