BrakesABS ECU - 2.0 and 2.3 · page 1 of 2

Refit

  1. Fit modulator and align modulator to mounting bracket.
  2. Tighten nuts to 10 Nm.
  3. Connect brake pipe unions to modulator, ensuring pipes are connected to the ports, as shown below.
  • MC 1 = Master cylinder primary
  • MC 2 = Master cylinder secondary
  • RF = Right hand front
  • LF = Left hand front
  • RR = Right hand rear
  • LR = Left hand rear.
  1. Tighten pipe unions to 14 Nm.
  2. Connect earth lead to modulator, fit and tighten nut.
  3. Connect multiplug to modulator and secure clip.
  4. Align mounting bracket to body and tighten bolts.
  5. Bleed brakes.See REPAIR MANUAL - Brakes.
  6. Connect battery earth lead.
  7. To ensure correct operation, the system MUST be tested using TestBook.

ABS ECU - 2.0 AND 2.3

Service repair no - 70.25.34

Remove

  1. Disconnect battery earth lead.

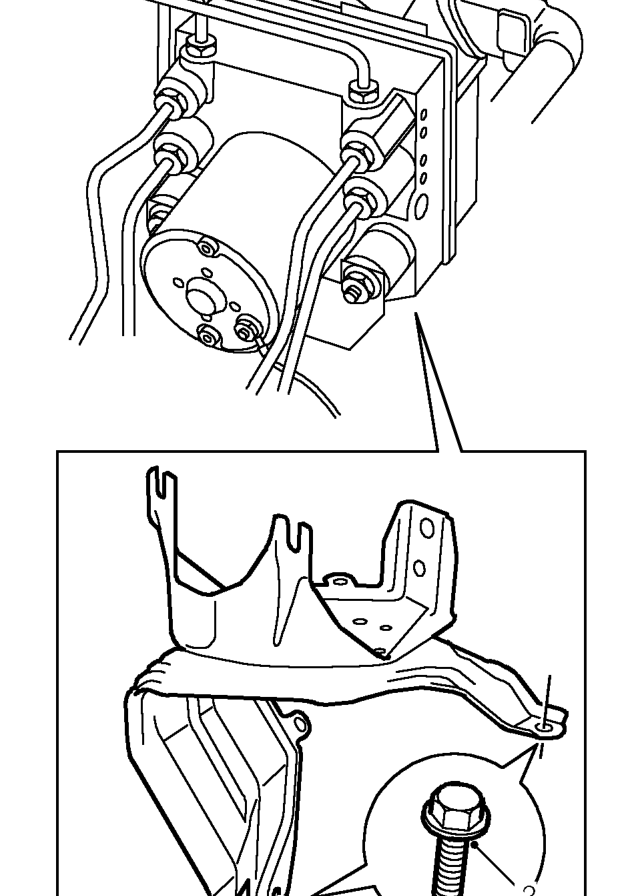

Abs ecu - 2.0 and 2.3 – Disconnect battery earth lead.
  1. Remove 3 bolts securing modulator bracket to body.
