ABS ECU - 2.0 and 2.3 (page 2 of 2)

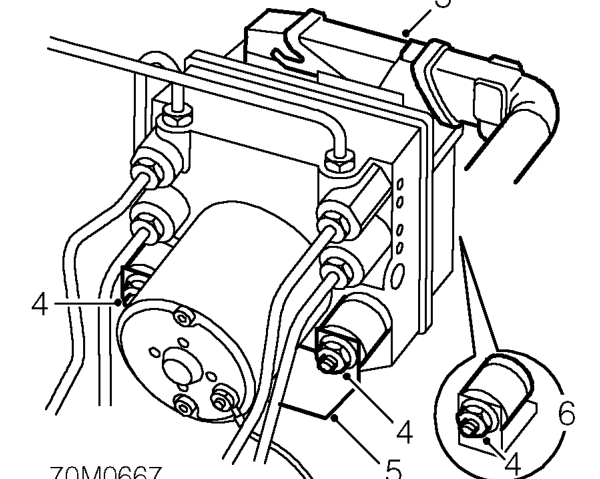

3. Lift clip and disconnect multiplug from ABS ECU.
4. Loosen 2 front nuts and remove rear nut securing modulator assembly to bracket.
5. Release bracket from modulator.

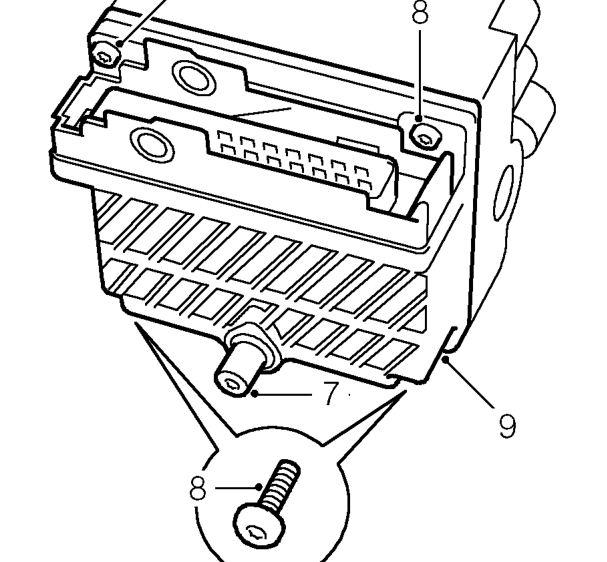

6. Remove rear mounting stud and rubber mounting from spigot on ECU.

7. Remove mounting spigot from ECU using a TX30 adaptor.
8. Remove 4 TX25 screws securing ECU to modulator.
9. Remove ECU from modulator.

• CAUTION: Take care to prevent the entry
• of foreign matter into the rear of the
• modulator.

Refit

1. Ensure ECU mating face on modulator is clean and seal is not damaged.
2. Engage 2 multiplugs and fit ECU to modulator.
3. Fit mounting spigot to ECU. DO NOT tighten.
4. Fit screws securing ECU to modulator and tighten to 8 Nm.
5. Tighten spigot to 15 Nm.
6. Fit mounting rubber to spigot.
7. Fit stud to mounting spigot.
8. Fit mounting bracket to modulator and tighten nuts to 10 Nm.
9. Connect multiplug to ECU and secure clip.
10. Align mounting bracket to body and tighten bolts.
11. Connect battery earth lead.
