AUXILIARY DRIVE BELT - ’L’ SERIES

Service repair no - 86.10.05

Check

1. Remove front centre underbelly panel. See BODY, Exterior fittings.
2. Turn steering to RH lock.

3. Check condition of drive belt, renew a belt that shows signs of wear, splitting or oil contamination.

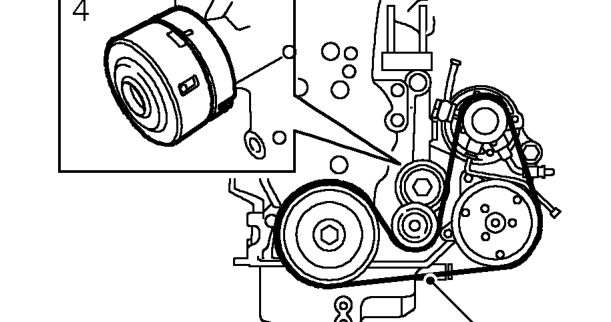

4. Check belt length, belt must be renewed before indicator reaches RH end of slot.
5. Fit front centre underbelly panel. See BODY, Exterior fittings.
