Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

44M 0245

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information › 44M 0245
Automatic gearbox44M 0245 · page 1 of 2

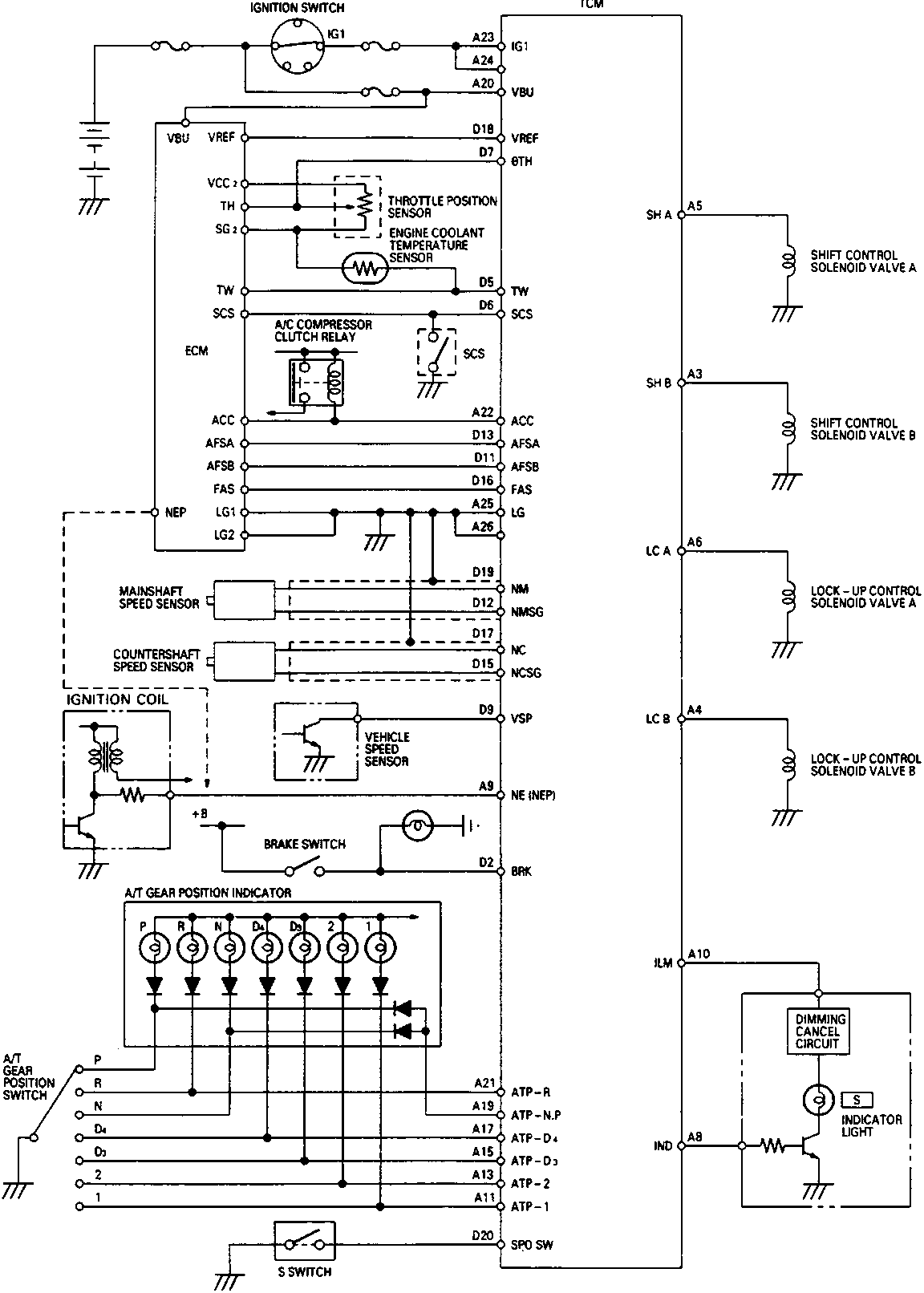

44M 0245 – diagram from the Automatic gearbox chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Schematic diagram of the automatic gearbox electronic control circuit showing connections between the TCM, ECM, various sensors (throttle position, engine coolant temperature, vehicle speed, mainshaft and countershaft speed), switches (ignition, brake, A/T gear position, S switch), solenoid valves (shift control A/B, lock-up control A/B), and indicator light with dimming cancel circuit. Includes terminal location tables for the TCM connector at the bottom.
A3A5A9A11A13A15A17A19A21A23A25
A4A6A8A10A20A22A24A26
D5D7D9D11D13D15D17D19
D2D6D12D16D18D20

TCM Terminal Location

44M 0245
