Automatic gearboxOriginal page

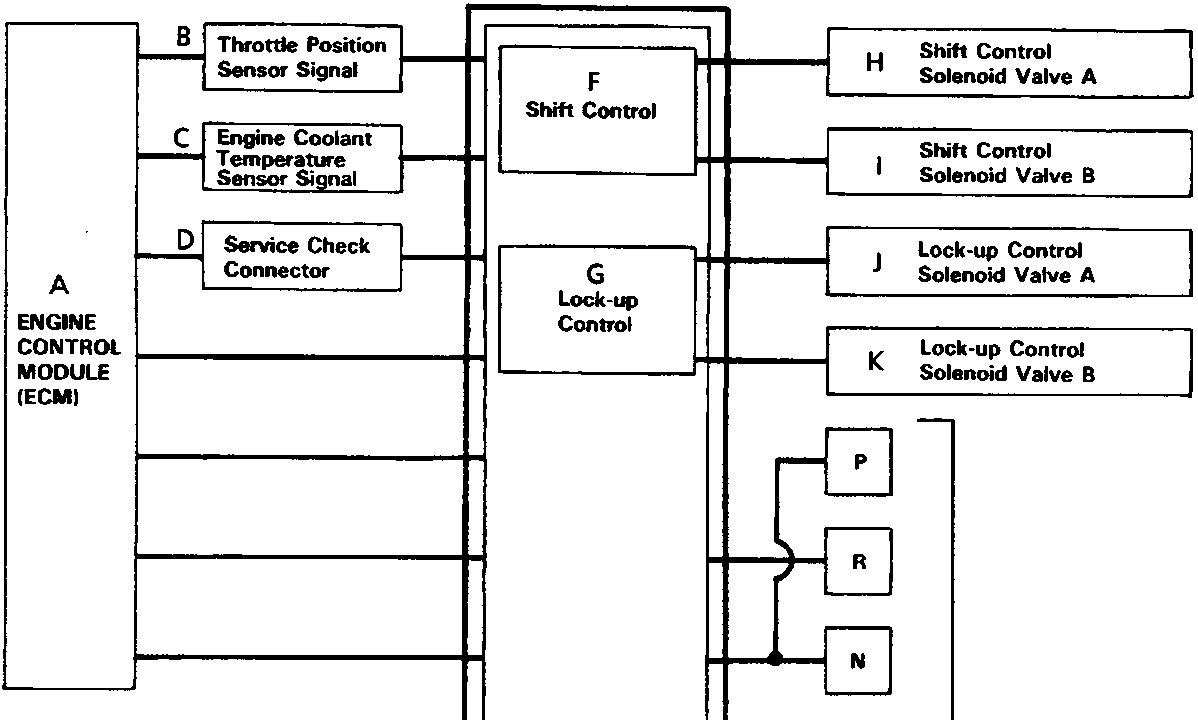

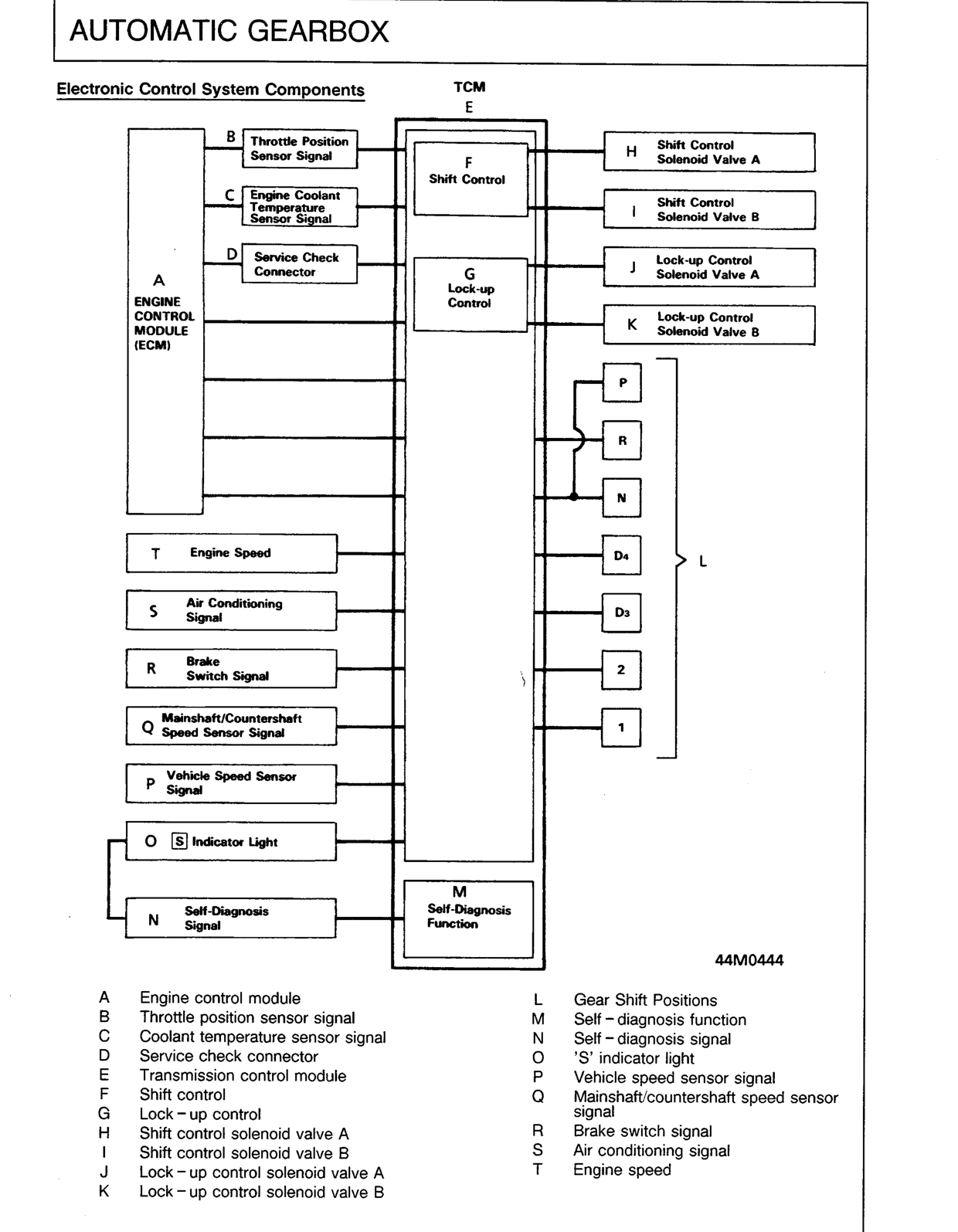

Schematic diagram of the Automatic Gearbox electronic control system showing the Engine Control Module (ECM), Transmission Control Module (TCM), various sensor signals, solenoid valves, and gear shift positions connected by lines.

44M0444

AEngine control moduleLGear Shift Positions
BThrottle position sensor signalMSelf - diagnosis function
CCoolant temperature sensor signalNSelf - diagnosis signal
DService check connectorO'S' indicator light
ETransmission control modulePVehicle speed sensor signal
FShift controlQMainshaft/countershaft speed sensor signal
GLock - up controlRBrake switch signal
HShift control solenoid valve ASAir conditioning signal
IShift control solenoid valve BTEngine speed
JLock - up control solenoid valve A
KLock - up control solenoid valve B
