Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Circuit diagrams

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information › Circuit diagrams
Automatic gearboxCircuit diagrams · page 1 of 2

Circuit diagrams – diagram from the Automatic gearbox chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

CIRCUIT DIAGRAMS

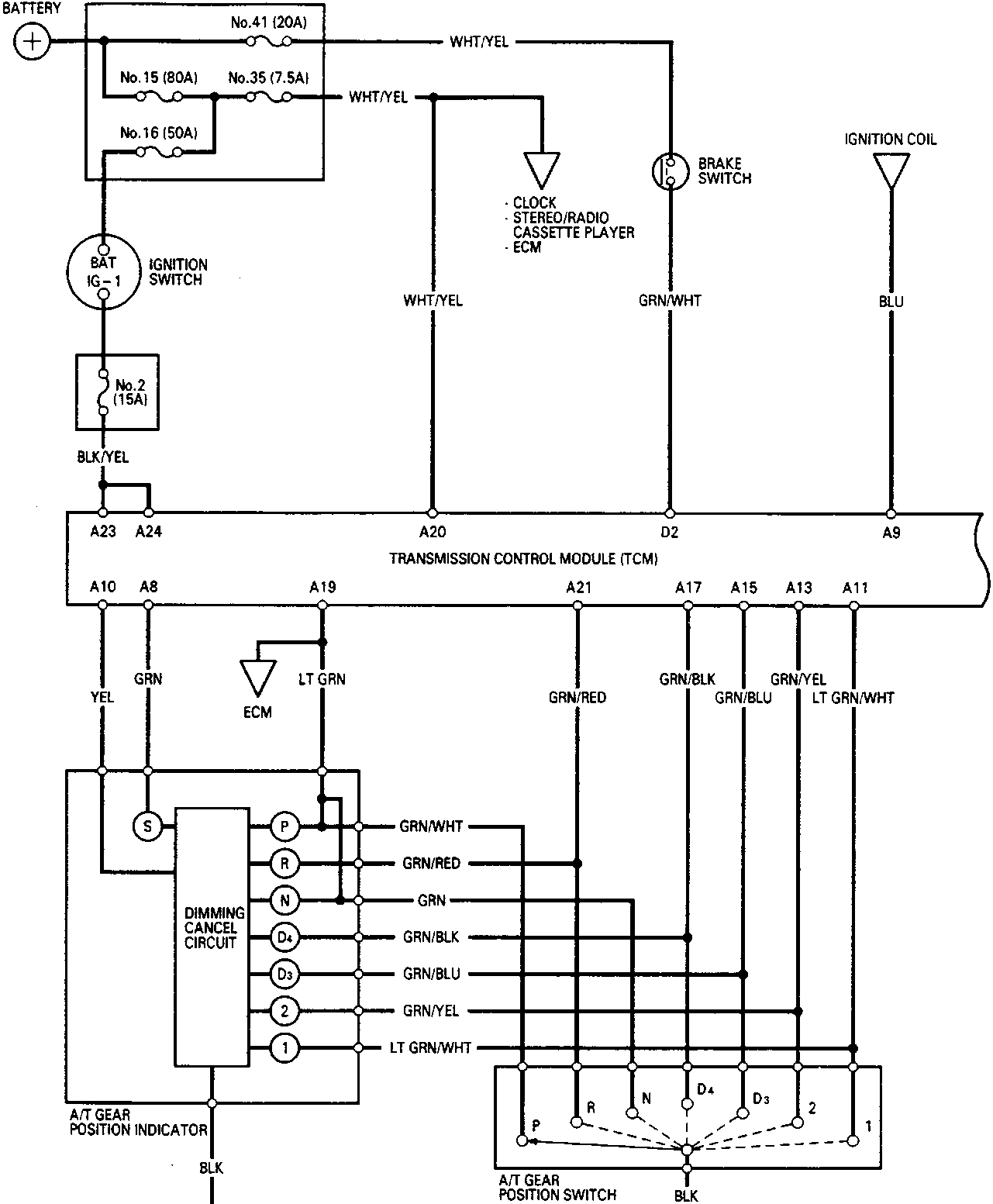

Circuit diagram for the automatic gearbox showing connections between the battery, under-hood fuse/relay box, ignition switch, transmission control module (TCM), A/T gear position indicator, and A/T gear position switch with wire color codes.
