08 · Transmission

Circuit diagrams (page 2 of 2)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Information

‹ Prev Circuit diagrams Next › Fault finding

Automatic gearboxCircuit diagrams · page 2 of 2

Circuit diagrams (page 2 of 2) – diagram from the Automatic gearbox chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

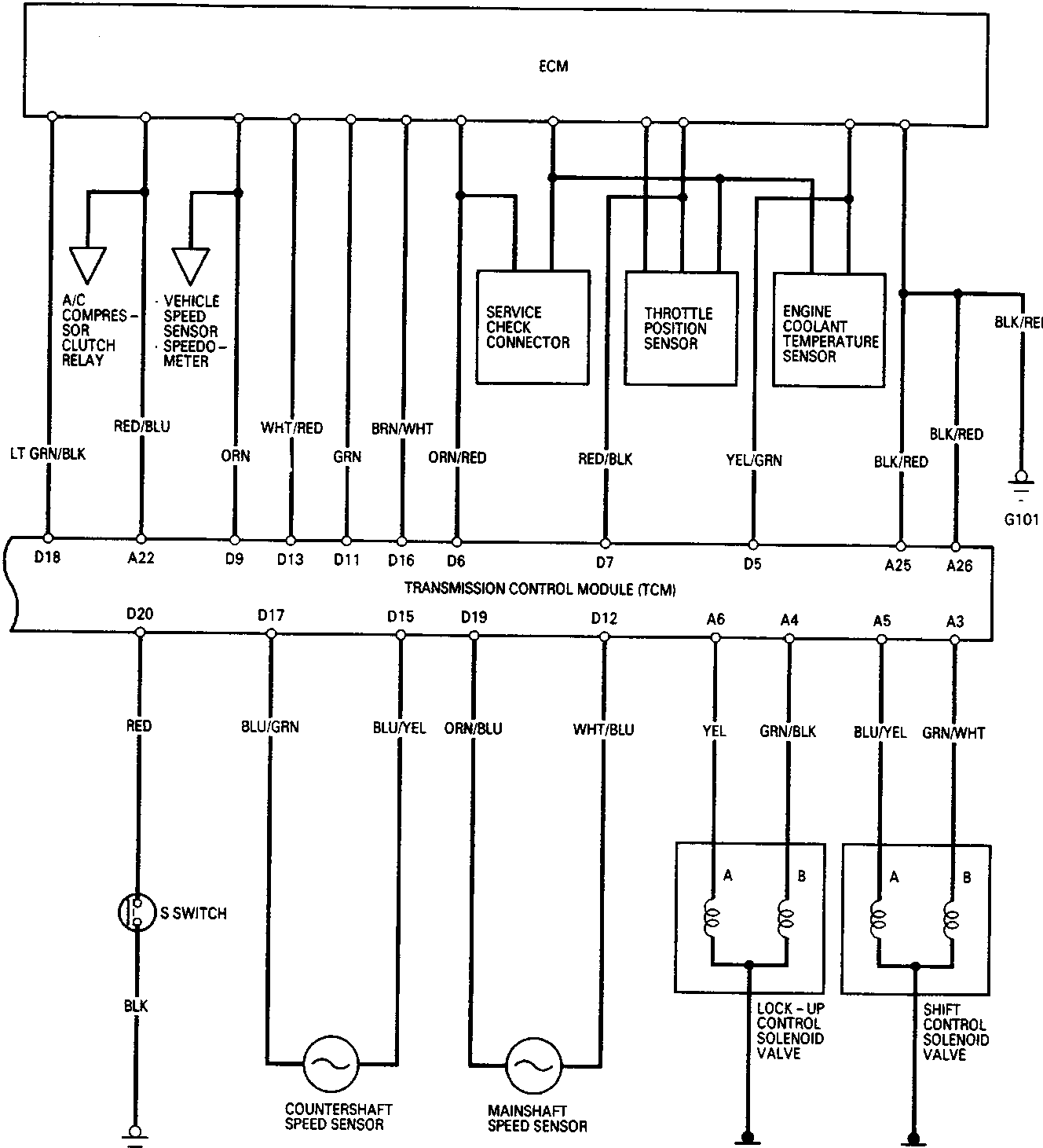

Schematic wiring diagram of the Transmission Control Module (TCM) showing connections to ECM, sensors, relays, and solenoid valves with wire color codes and terminal numbers.

G401

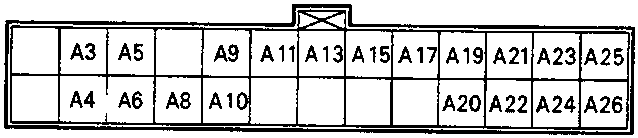

Diagram of the TCM connector terminal layout for terminals A3 through A26.

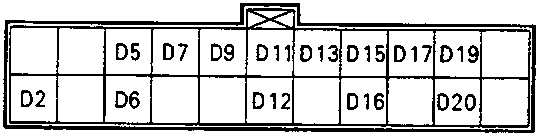

Diagram of the TCM connector terminal layout for terminals D2 through D20.

TCM Terminal Location
