JACKING, SUPPORTING AND TOWING

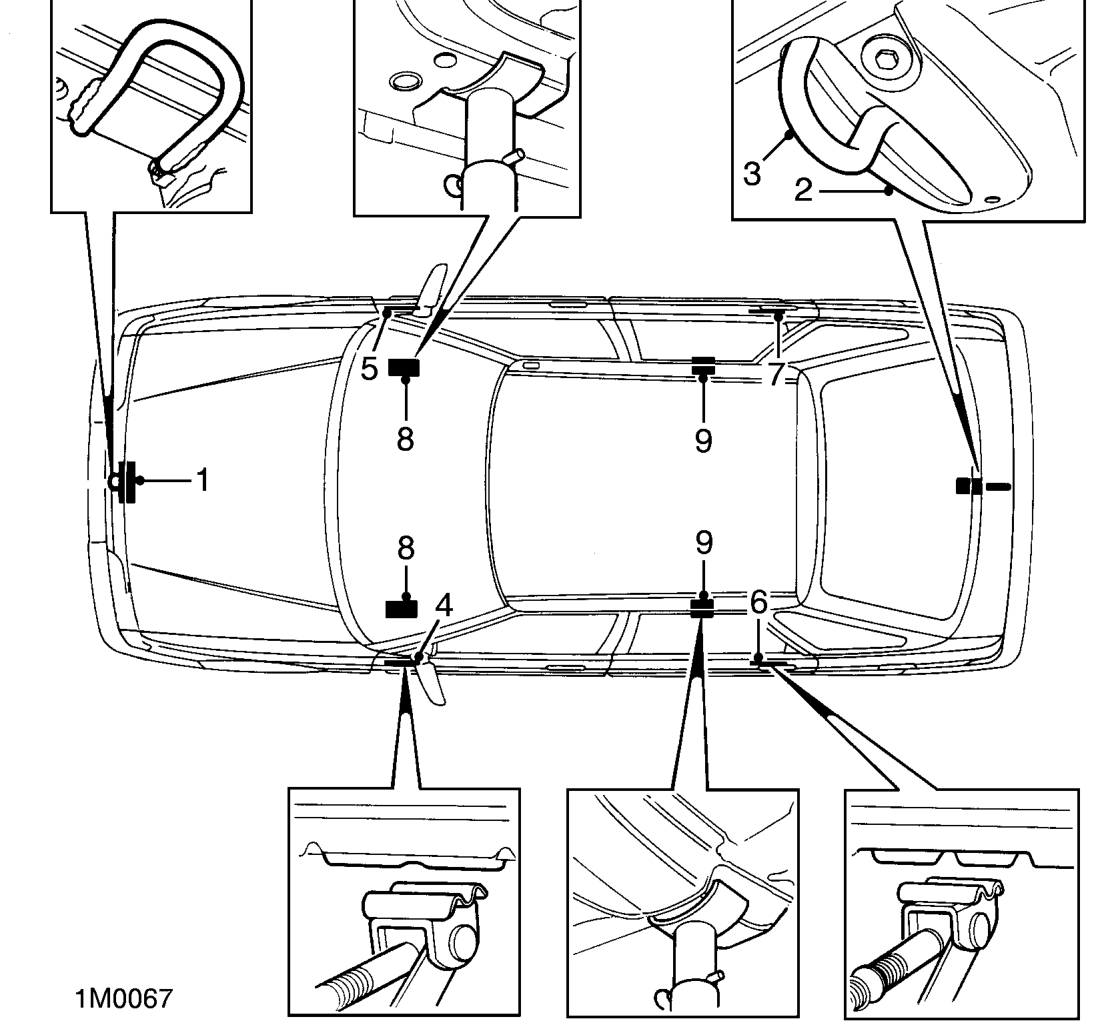

Jacking and support points

1. Front jacking point, lashing/towing eye
2. Rear jacking point
3. Rear lashing/towing eye
4. LH sill re-inforced bracket front
5. RH sill re-inforced bracket front

WARNING: In accordance with normal workshop practice and to avoid vehicle damage or personal injury, work must not be carried out on or under a vehicle when it is supported solely on a jack. Place safety supports under the floor longitudinal members (8 and 9) or sill re-inforced brackets (4,5,6 and 7).

WARNING: Do not position a jack, jack stand or wheel free support under the suspension attachment points.

6. LH sill re-inforced bracket rear
7. RH sill re-inforced bracket rear
8. Longitudinal members - front
9. Longitudinal members - rear
