Restraint systemsComponent location

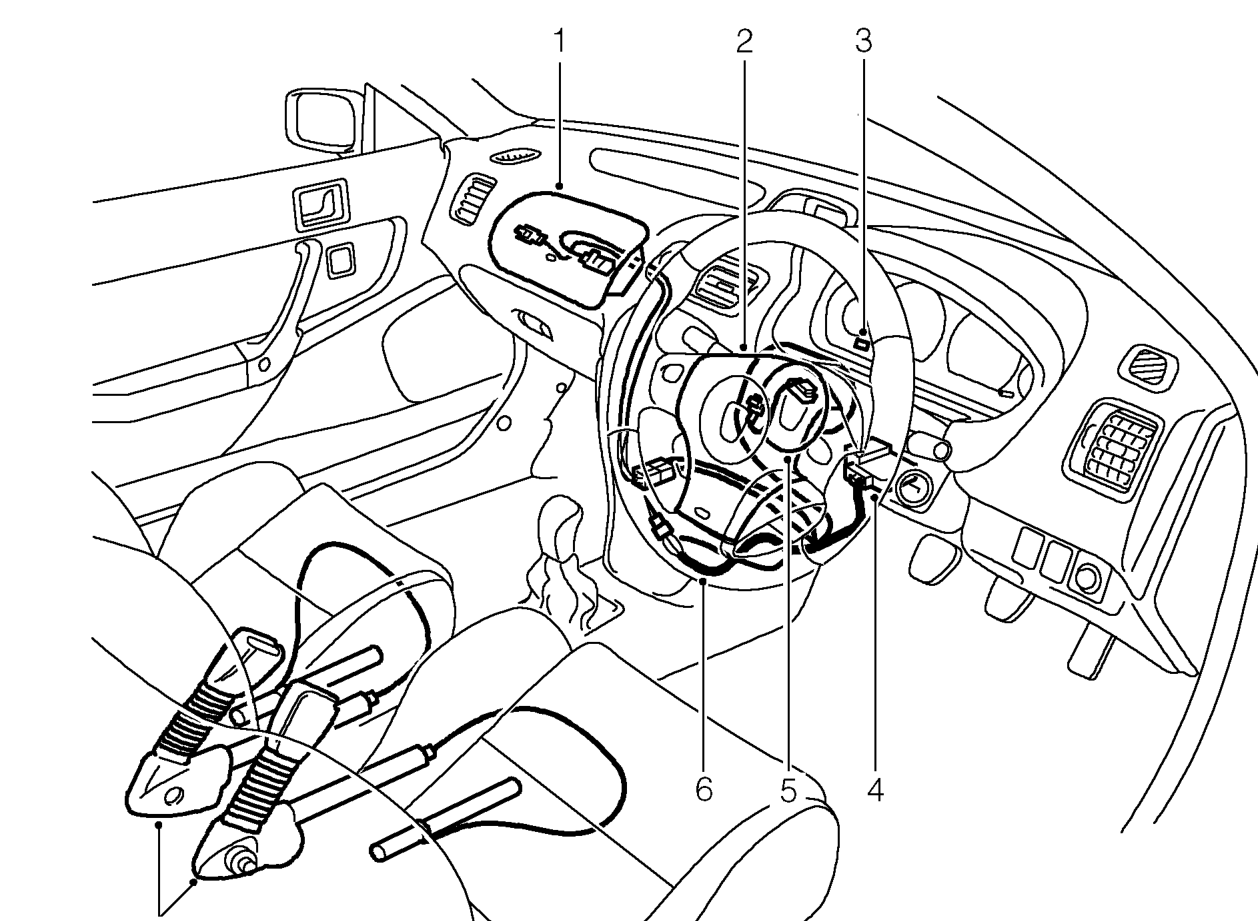

COMPONENT LOCATION
NOTE: LHD type is symmetrical to RHD type.
- Passenger’s airbag module *
- Driver’s airbag module *
- SRS warning lamp
- Diagnostic control unit *
- Rotary coupler *
- SRS harness (YELLOW) *
- Seat belt Pre-tensioners*
* Components to be renewed following system deployment.
NOTE: Following deployment of the Supplementary Restraint System (SRS) within the vehicle, under any circumstances, all system components including the yellow harnesses MUST be replaced.
