Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement22 · Air conditioning
22 · Heating & A/C

Air conditioning components

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Description and operation › Air conditioning components
Air conditioningAir conditioning components

AIR CONDITIONING COMPONENTS

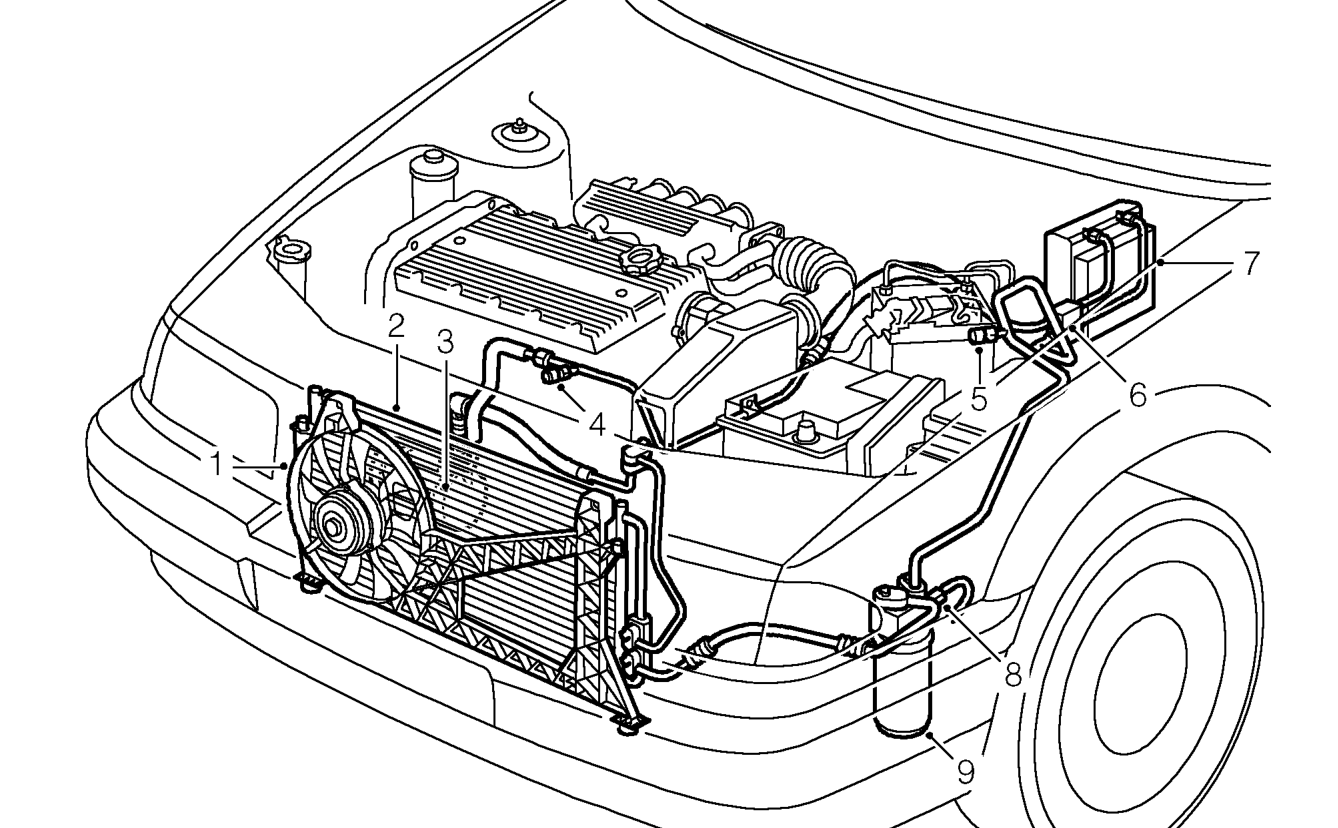

Air conditioning components
  1. Cooling fan - condenser
  2. Condenser
  3. Compressor
  4. Low pressure servicing connection
  5. High pressure servicing connection
  6. Thermostatic expansion valve
  7. Evaporator
  8. Trinary pressure switch
  9. Receiver/dryer
