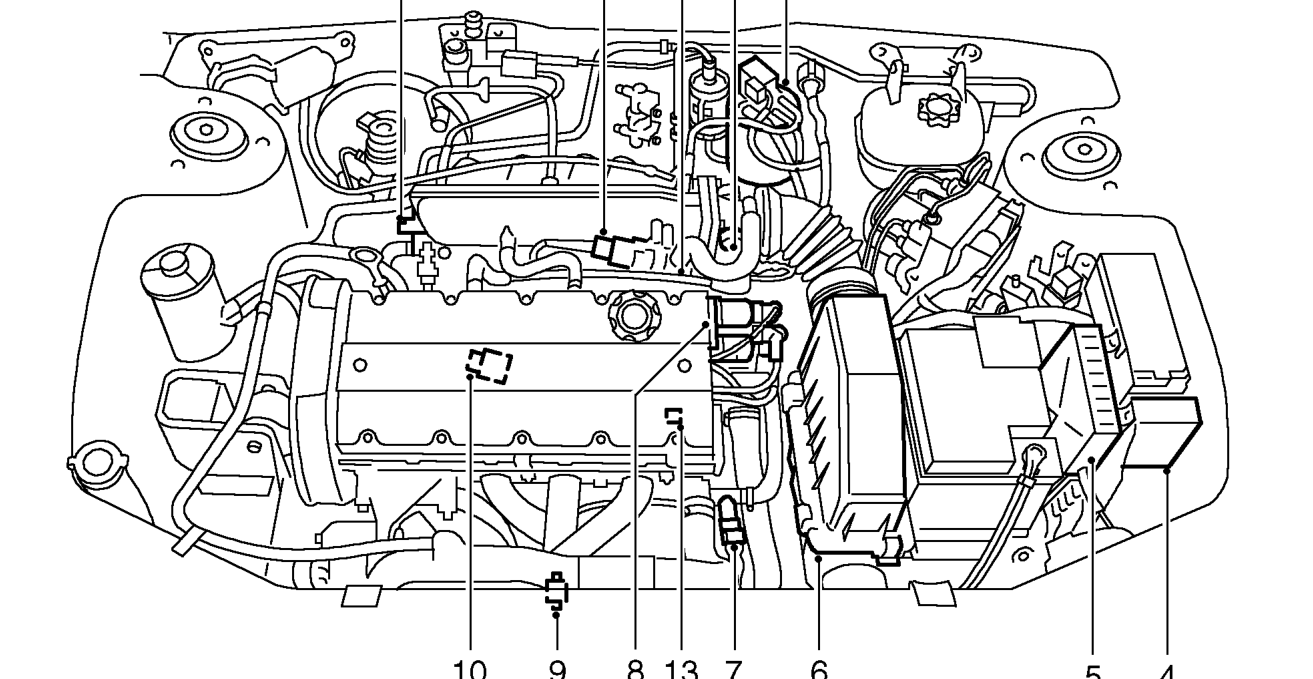

ENGINE COMPARTMENT COMPONENT LOCATIONS - ’K16’

1. Manifold absolute pressure sensor (part of ECM)
2. Idle air control valve
3. EVAP canister and purge valve
4. Relay module
5. Engine control module (ECM)
6. Air cleaner
7. Engine coolant temperature sensor
8. Distributor
9. Oxygen sensor
10. Ignition coil
11. Throttle position sensor
12. Fuel pressure regulator
13. Crankshaft position sensor
14. Intake air temperature sensor
