Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Steering wheel components

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Description and operation › Steering wheel components
SteeringSteering wheel components

STEERING WHEEL COMPONENTS

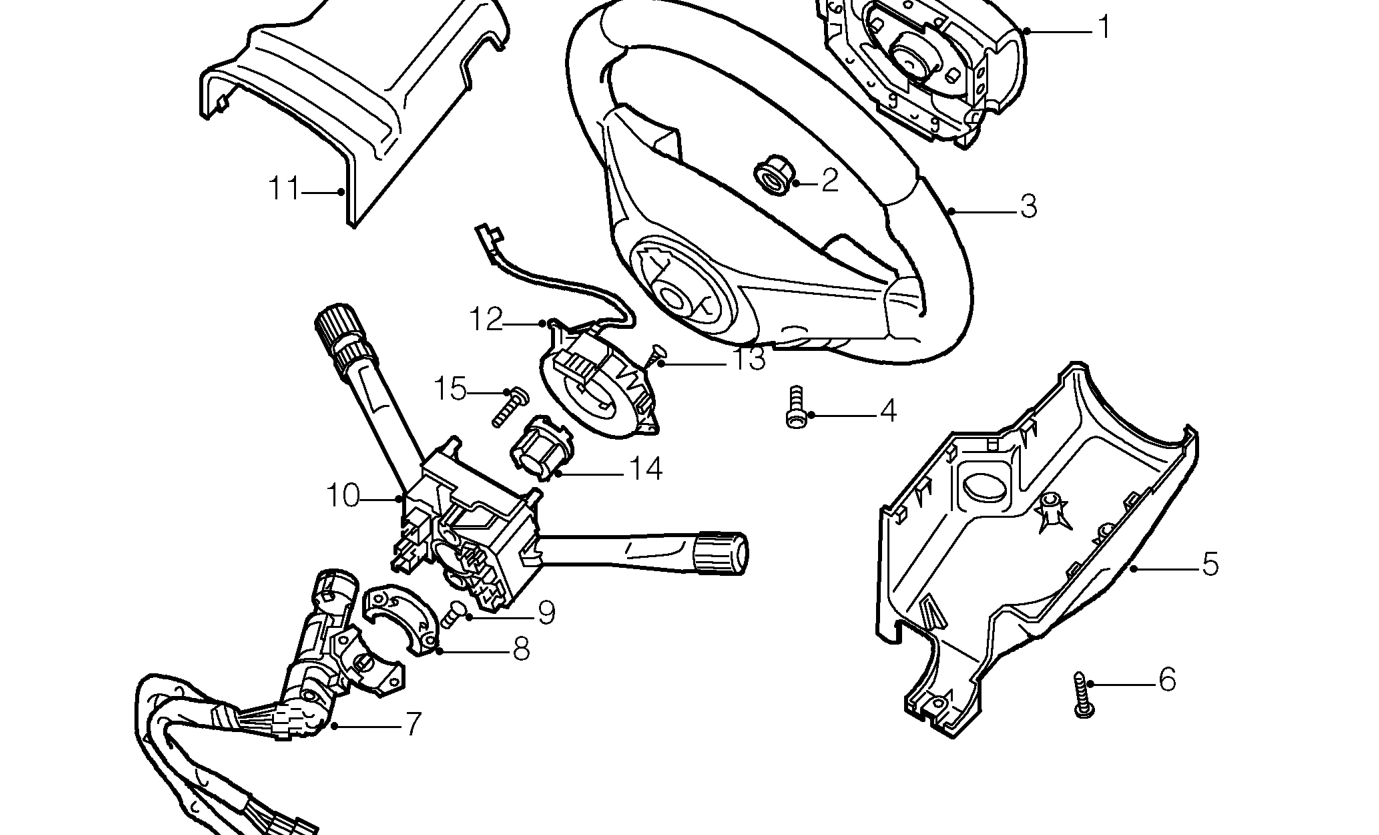

Steering wheel components
  1. Driver’s airbag module
  2. Self-locking nut
  3. Steering wheel
  4. Torx bolt
  5. Nacelle - lower half
  6. Screw
  7. Steering lock assembly
  8. Bracket - steering lock assembly
  9. Shear bolt
  10. Lighting, turn and wiper switch assembly
  11. Nacelle - upper half
  12. Rotary coupler
  13. Screw - self-tapping
  14. Cancel cam - indicator switch
  15. Screw
