POWER STEERING OPERATION

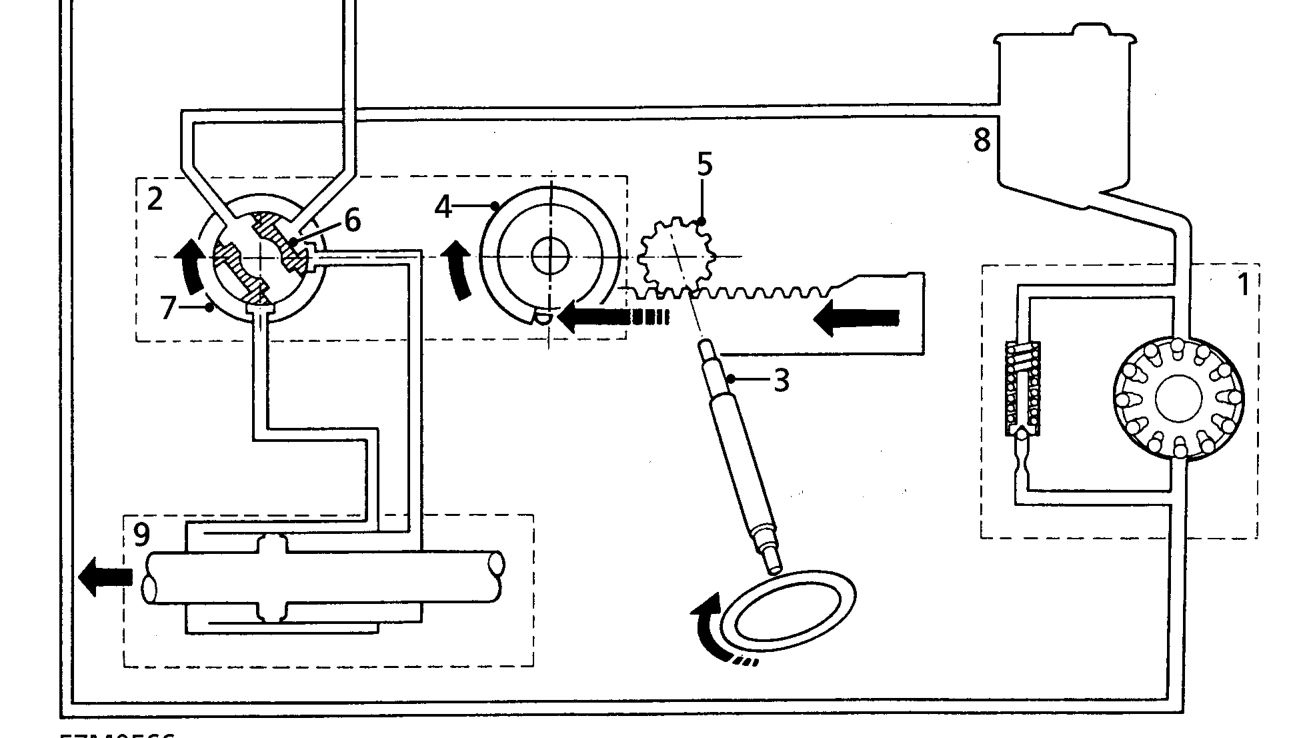

Power steering operation
  1. Roller vane pump
  2. Power valve
  3. Pinion shaft
  4. Spring ring
  5. Pinion
  6. Inner spool
  7. Outer spool
  8. Fluid reservoir
  9. Steering rack
