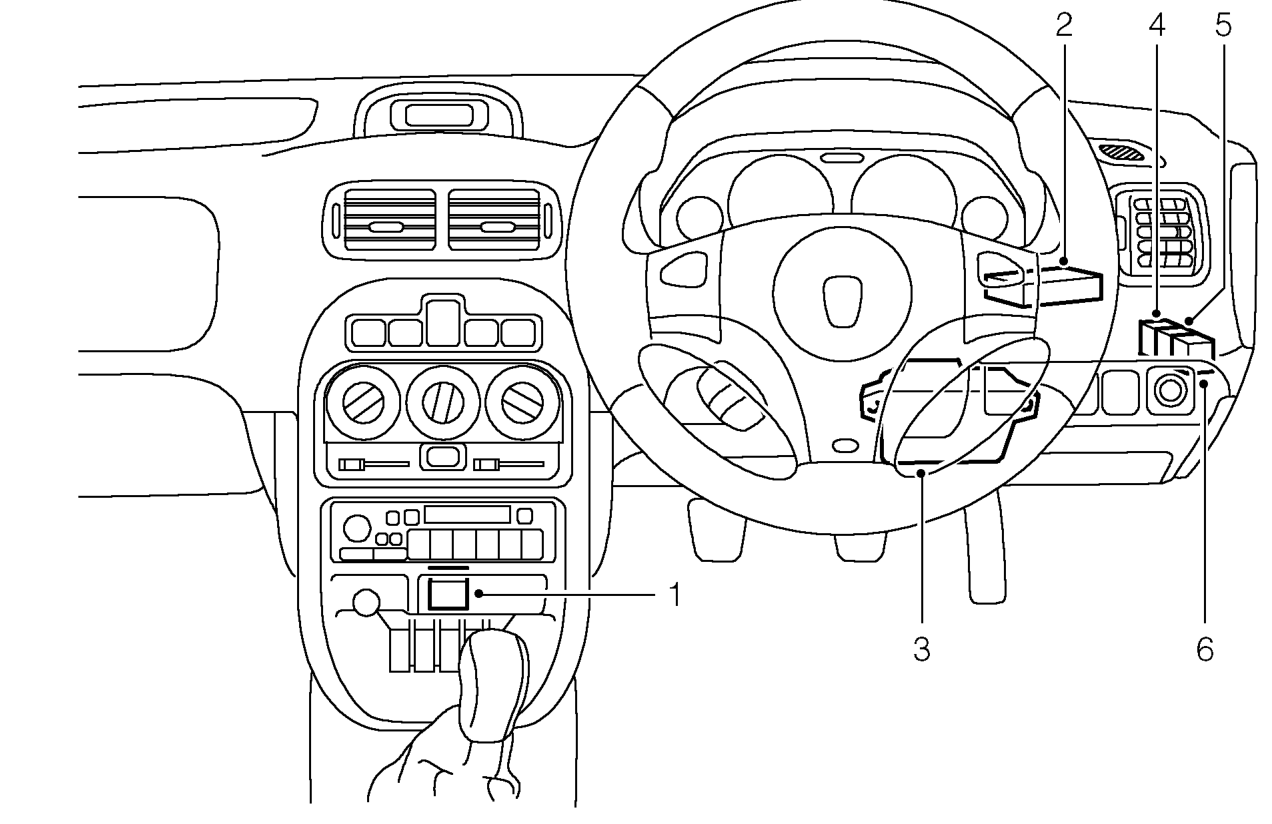

ELECTRICAL COMPONENTS - BEHIND FASCIA/CENTRE CONSOLE

1. Front fog light relay - RHD
2. Anti-theft alarm/central door locking control unit
3. Integrated circuit unit (ICU)/passenger compartment fusebox
4. Dim-dip relay - RHD Front fog light relay - LHD
5. Window lift relay
6. Sun roof relay
