Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement23 · Wipers & washers
23 · Electrical

Windscreen washer pump

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Windscreen washer pump
Wipers & washersWindscreen washer pump

WINDSCREEN WASHER PUMP

Service repair no - 84.10.21

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to collect any fluid loss.

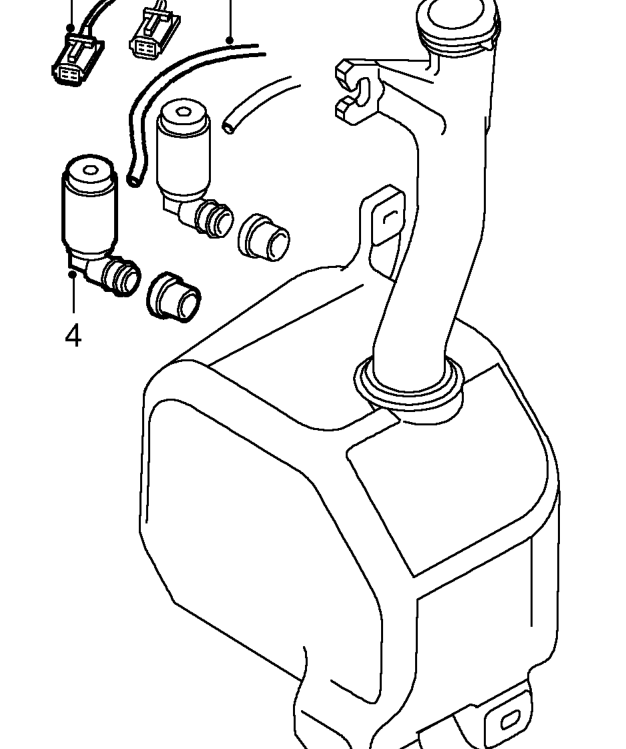

Windscreen washer pump – Position container to collect any fluid loss.
  1. Disconnect multiplug and hose from windscreen washer pump.
  2. Release pump from reservoir and remove seal.

Refit

  1. Lubricate and fit pump seal to reservoir.
  2. Fit pump to reservoir.
  3. Connect hose and multiplug to pump.
  4. Refit front bumper. See BODY, Exterior fittings.
  5. Refill washer reservoir.

WINDSCREEN WASHER AND WIPER SWITCH

Service repair no - 84.15.34

Remove

  1. Remove steering column switch pack. See ELECTRICAL, Repairs.

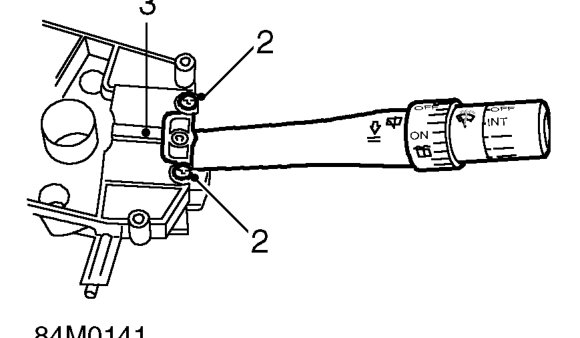

Windscreen washer and wiper switch – Remove steering column switch pack. See ELECTRICAL, Repairs.
  1. Remove 2 screws securing washer and wiper switch to switch pack.
  2. Depress retaining tag and remove washer and wiper switch assembly.

Refit

  1. Fit washer and wiper switch assembly and secure with screws.
  2. Fit steering column switch pack. See ELECTRICAL, Repairs.
