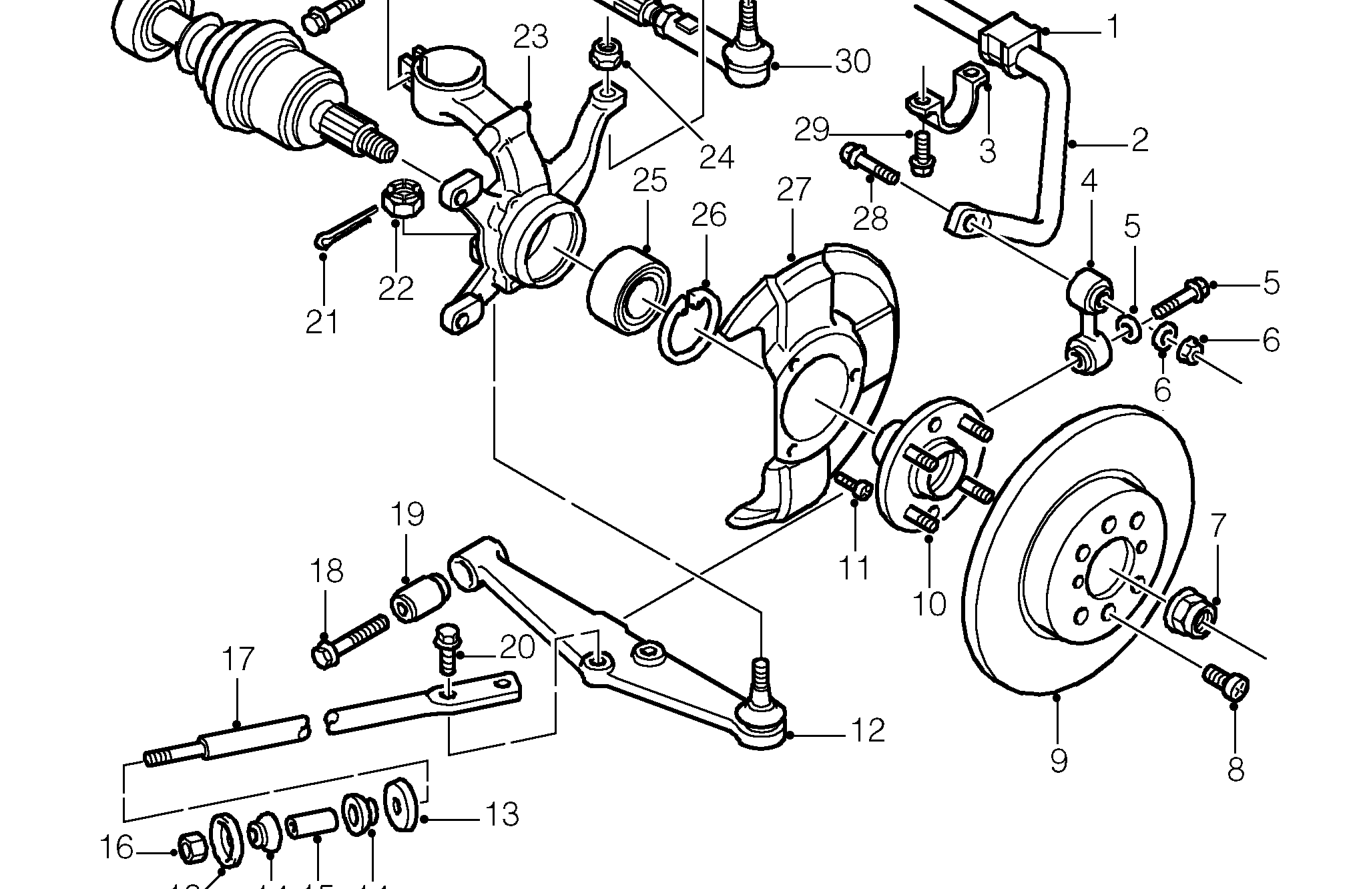

Front suspension components

FRONT SUSPENSION COMPONENTS

1. Anti-roll bar bush
2. Anti-roll bar
3. Bush clamp
4. Link - anti-roll bar to lower arm
5. Flange bolt and washer
6. Flange nut and washer
7. Drive shaft nut - locking
8. Screw - brake disc to drive flange
9. Brake disc
10. Drive flange
11. Screw - disc shield to hub
12. Lower arm
13. Washer
14. Bush
15. Spacer
16. Nut - tie rod to front beam
17. Tie rod
18. Bolt - lower arm to body
19. Bush - lower arm to body
20. Bolt - tie rod to lower arm
21. Split pin
22. Nut - lower ball joint
23. Swivel hub
24. Nut - steering arm ball joint
25. Hub bearing
26. Circlip - bearing
27. Disc shield
28. Bolt - anti-roll bar to link
29. Bolt - bush clamp
30. Steering arm
