SPLASH SHIELD - ’K16 WITH VVC’

Service repair no - 76.10.50

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

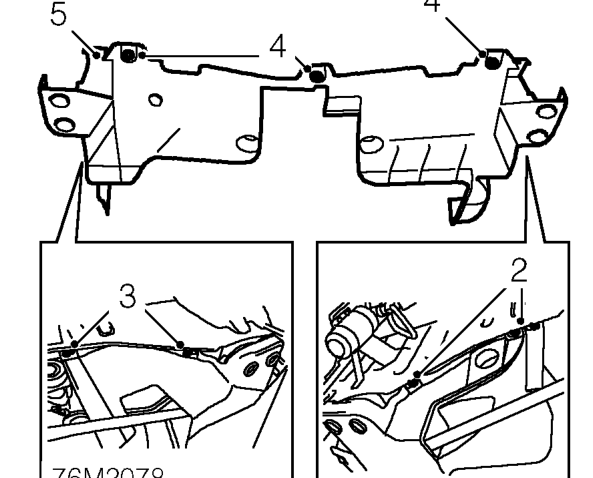

Splash shield - ’k16 with vvc’ – Raise front of vehicle.
  1. Remove 3 bolts securing LH end of splash shield to body.
  2. Remove 2 bolts securing RH end of splash shield to body.
  3. Remove 3 bolts securing front edge of splash shield to body.
  4. Remove splash shield.

Refit

  1. Position splash shield to vehicle and secure front edge to body with screws. Tighten screws to 5 Nm.
  2. Fit bolts securing RH end of splash shield to body and tighten to 5 Nm.
  3. Fit bolts securing LH end of splash shield to body and tighten to 5 Nm.
  4. Remove stand(s) and lower vehicle.

FRONT BUMPER

Service repair no - 76.22.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

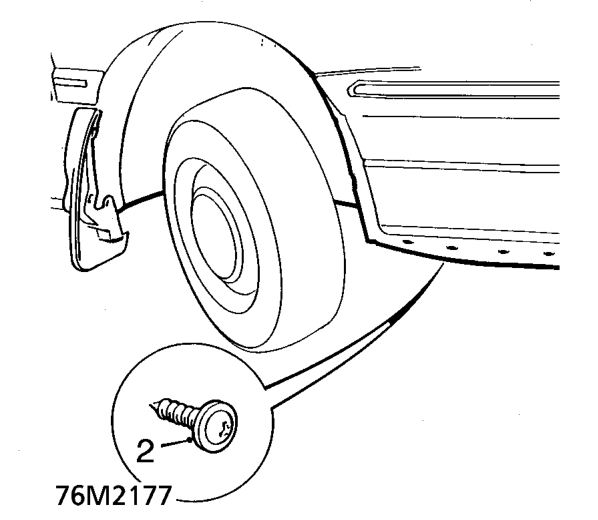

Front bumper – Raise front of vehicle.
  1. Remove 4 screws securing each wheel arch liner to bumper.
  2. Release both wheel arch liners from bumper.
  3. Models with front fog lights: Remove both front fog lights. See ELECTRICAL, Repairs.

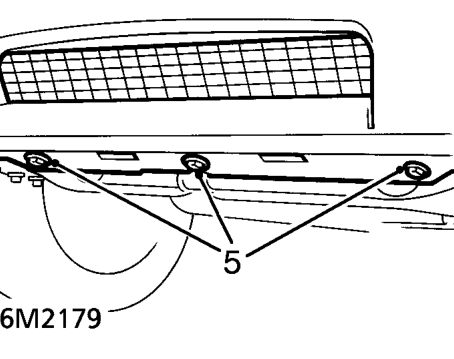

Front bumper – Models with front fog lights: Remove both front fog lights. See ELECTRICAL, Repairs.
  1. Remove 3 bolts securing bumper to body.
