Splash shield - ’K16 with VVC’ (page 2 of 2)

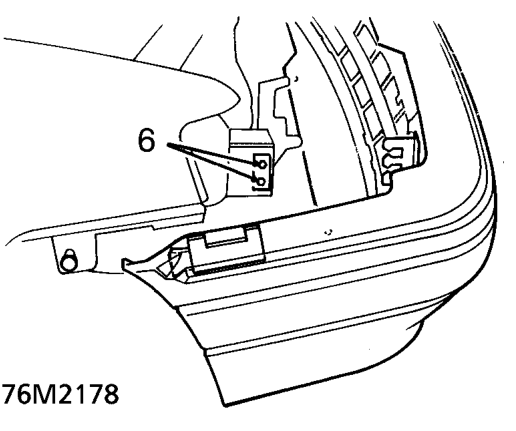

6. Loosen 4 bolts securing bumper mounting brackets to body.
7. Remove front bumper.

Do not carry out further dismantling if component is removed for access only.

8. Remove number plate from bumper.

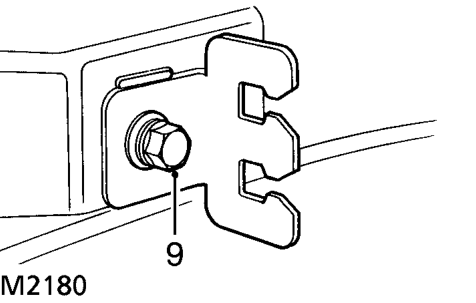

9. Remove 2 bolts securing mounting brackets to bumper.
10. Remove 7 clips securing stone guard to bumper.
11. Remove stone guard and fit to new bumper. Secure with clips.
12. Position brackets to bumper and secure with bolts.
13. Clean mating faces of number plate and bumper to ensure both are free from grease and dirt.
14. Attach adhesive pads to rear of number plate.
15. Fit number plate to bumper.

Refit

1. Fit front bumper to body.
2. Tighten bolts securing bumper mounting brackets to body to 10 Nm.
3. Models with front fog lights: Fit front fog lights. See ELECTRICAL, Repairs.
4. Position both wheel arch liners to bumper.
5. Fit bolts securing bumper to body and tighten to 10 Nm.
6. Fit and tighten screws securing wheel arch liners to bumper.
7. Remove stand(s) and lower vehicle.
