Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement24 · Electrical
24 · Electrical

Front fog light

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Front fog light
ElectricalFront fog light

FRONT FOG LIGHT

Service repair no - 86.40.96

Remove

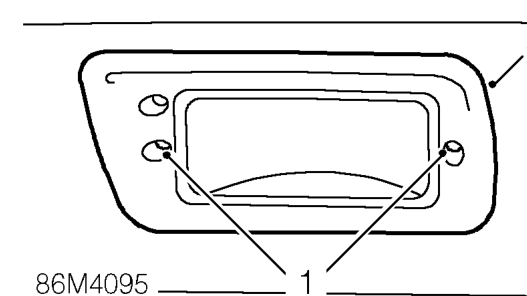

Front fog light – Service repair no - 86.40.96
  1. Remove 2 screws securing LH front fog light to bumper.
  2. Release fog light from bumper and disconnect multiplug.
  3. Remove fog light.

Refit

  1. Position fog light and connect multiplug.
  2. Fit fog light to bumper and secure with screws.

GLOVE BOX LAMP

Service repair no - 86.45.08

Remove

  1. Open glove box.

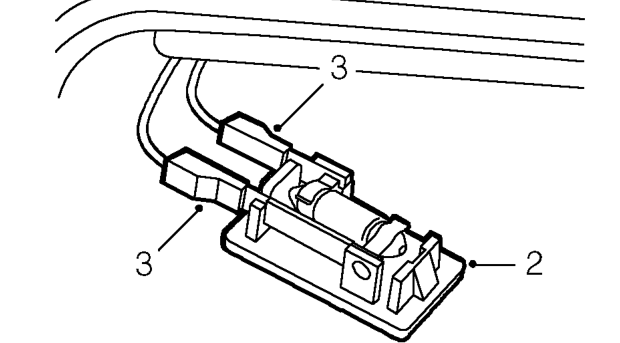

Glove box lamp – Open glove box.
  1. Release lamp from fascia.
  2. Disconnect 2 Lucar connectors and remove lamp.

Refit

  1. Position lamp to fascia and connect Lucars.
  2. Fit lamp to fascia.
  3. Close glove box.
