ALTERNATOR - MODELS WITH AIR CONDITIONING

Service repair no - 86.10.02.20

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

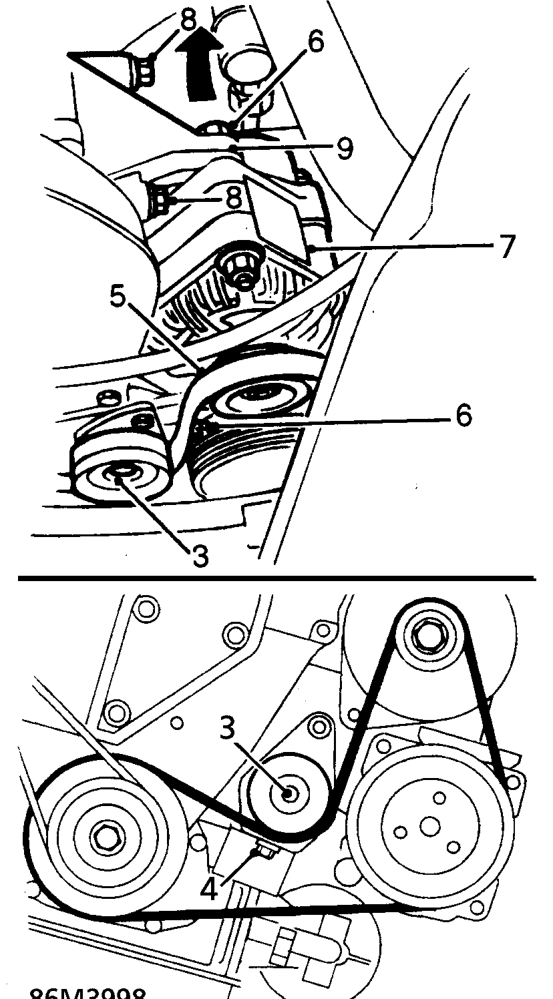

Alternator - models with air conditioning – Raise front of vehicle.
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Release drive belt tension by turning the tension adjusting bolt anti-clockwise.
  3. Disconnect drive belt from alternator pulley.
  4. Remove 2 nuts and bolts securing alternator to engine.
  5. Release alternator from mounting brackets.
  6. Remove bolt and loosen nut securing alternator top mounting bracket to engine.
  7. Pivot alternator mounting bracket out of the way.

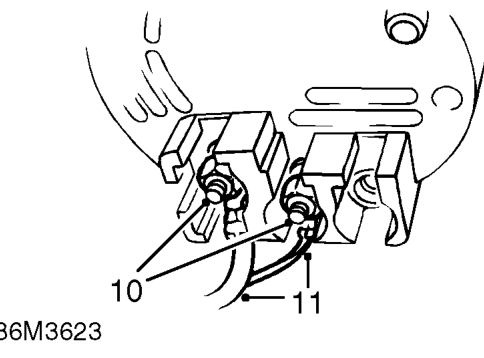

Alternator - models with air conditioning – Pivot alternator mounting bracket out of the way.
  1. Loosen 2 nuts securing cables to alternator.
  2. Disconnect 2 cables from alternator.
  3. Remove alternator from vehicle. Do not carry out further dismantling if component is removed for access only.
Alternator - models with air conditioning – Remove alternator from vehicle. Do not carry out further dismantling if component is remov

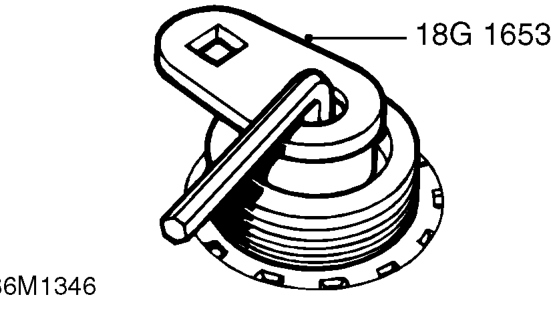

  1. Restrain the alternator shaft with an 8 mm Allen key and remove nut securing pulley to alternator shaft using tool 18G 1653.
  2. Remove pulley from alternator.
  3. Clean pulley and alternator shaft.
  4. Fit pulley to alternator shaft.
  5. Fit alternator pulley nut, hold shaft with an 8 mm Allen key and using tool 18G 1653, tighten nut to 25 Nm.
