Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement24 · Electrical
24 · Electrical

Battery

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Battery
ElectricalBattery

BATTERY

Service repair no - 86.15.01

Remove

  1. Disconnect both battery leads, earth lead first.

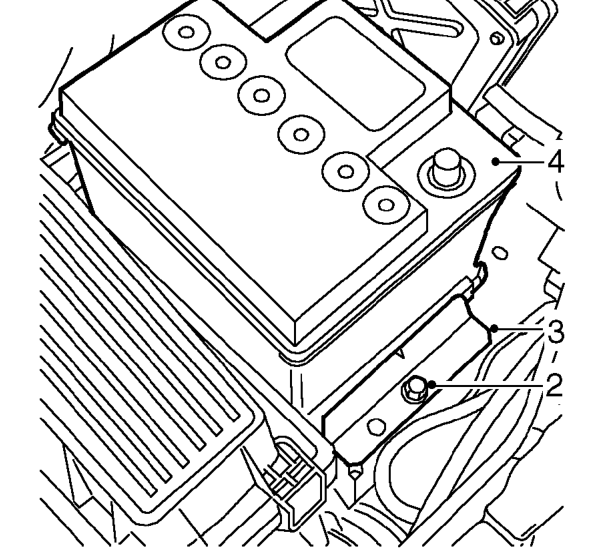

Battery – Disconnect both battery leads, earth lead first.
  1. Remove bolt securing battery clamp to battery tray.
  2. Remove battery clamp.
  3. Release and remove battery from vehicle.

Refit

  1. Clean battery terminals and coat with petroleum jelly.
  2. Position battery to battery tray.
  3. Fit battery clamp and secure with bolt.
  4. Position and connect battery leads, earth lead last

CENTRAL DOOR LOCKING (CDL) ECU

Service repair no - 86.26.01

The central door locking system and the Anti-theft alarm are controlled by a common ECU. Refer to Anti-theft alarm ECU for further details. See this section.
