Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement24 · Electrical
24 · Electrical

Heated rear screen switch

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Heated rear screen switch
ElectricalHeated rear screen switch

HEATED REAR SCREEN SWITCH

Service repair no - 86.65.36

Remove

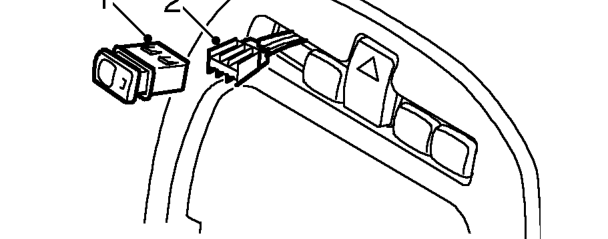

Heated rear screen switch – Service repair no - 86.65.36
  1. Release heated rear screen switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.

HAZARD WARNING LIGHT SWITCH

Service repair no - 86.65.50

Remove

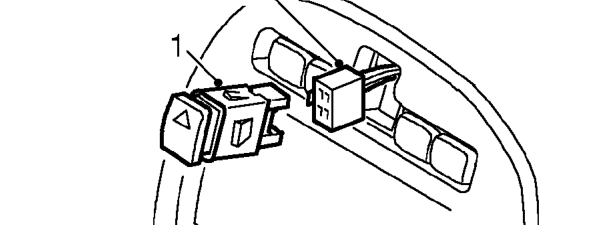

Hazard warning light switch – Service repair no - 86.65.50
  1. Release hazard warning light switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.
