Volumetric sensor - Cabriolet models

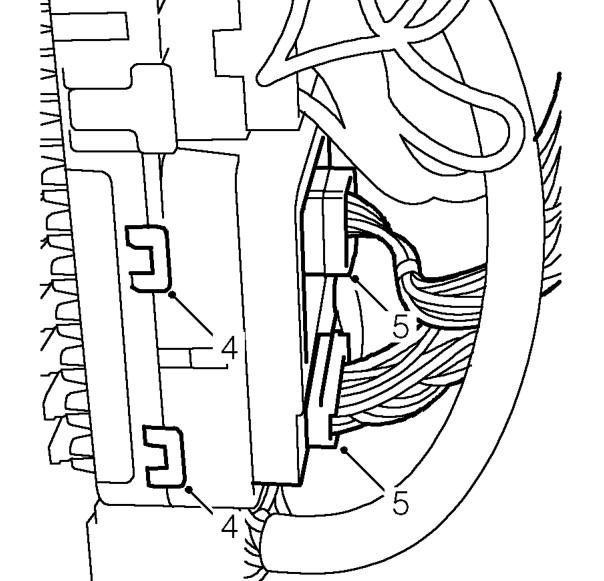

4. Release 2 clips securing ICU to rear of passenger compartment fuse box and release ICU.
5. Disconnect 2 multiplugs from ICU.

Refit

1. Connect multiplugs to ICU.
2. Position ICU and engage to fuse box clips.
3. Position fuse box and tighten nuts to 10 Nm.
4. Fit fuse box cover and secure with turnbuckles.
5. Connect battery earth lead.

VOLUMETRIC SENSOR - CABRIOLET MODELS

Service repair no - 86.55.94

Remove

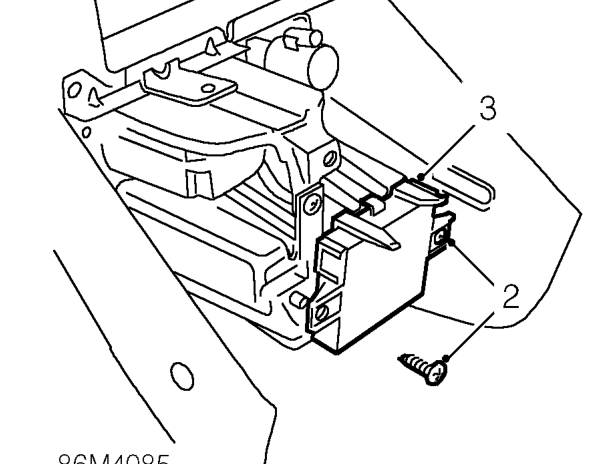

1. Remove front console. See BODY, Interior trim components.

2. Remove 2 screws securing volumetric sensor to console.
3. Remove volumetric sensor.

Refit

1. Position sensor to console and secure with screws.
2. Fit front console. See BODY, Interior trim components.
